Vega Single Stage Centrifugal Pumps

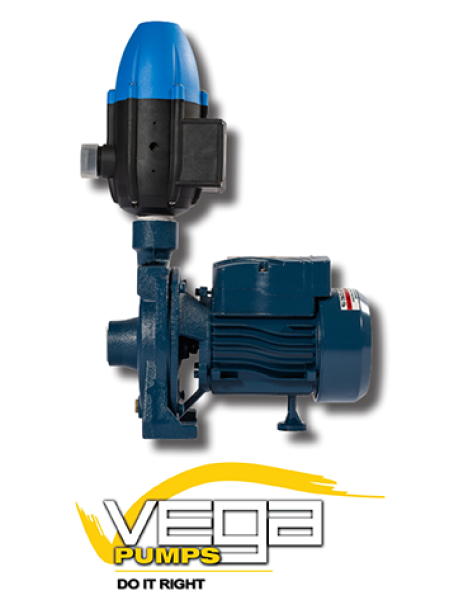

Vega single stage centrifugal pumps
Vega CPM (230V) and CP (400V) end-suction single stage centrifugal pumps for water transfer, irrigation and pressure boosting: 0.37 – 2.2 kW, up to 8 m³/h (133 l/min) and heads up to 55 m, plus the high flow range up to 25 m³/h. Pump only, with flow control, or as a kit with suction hose.
| Power | 0.37 – 2.2 kW |
| Supply | 230V single-phase (CPM) or 400V three-phase (CP) |
| Flow | up to 8 m³/h; high flow up to 25 m³/h |
| Head | up to 55 m |
| Pump body | cast iron, brass impeller |
How to choose: choose the standard range for pressure and the high flow range for volume; then the voltage and whether you want flow control.
| Complete Specifications, Sizing and Price Guide – Click Here |
| Vega CPM Centrifugal Pumps Performance Curves and Technical Data PDF, 1040 kB | Download |
