Mono BP4M FE

Mono BP4M FE - 50mm

Mono BP4M FE - 50mm

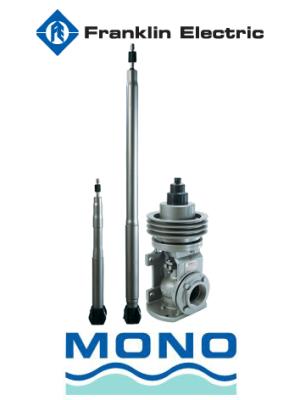

Mono BP4M FE progressive cavity (helical rotor) borehole pump element for a 50 mm column with 16 mm line shaft. Driven from the surface by a discharge head – no motor in the borehole – it gives a steady flow at any depth and handles sandy, silty and gassy water. Heads up to 150 m, absorbed power 0.5 kW at 0 m to 2.1 kW at 150 m, speed 700–1500 rpm.

Column / outlet	50 mm
Line shaft	16 mm
Max. head	150 m
Power at pump	0.5 – 2.1 kW (0 – 150 m)
Speed	700–1500 rpm
Sold as	pump element only – discharge head, column, line shaft and drive separate

How to choose: read the flow at your head and speed from the performance curve, then add a discharge head, 50 mm column with 16 mm line shaft, and a drive.

Complete Specifications, Sizing and Price Guide – Click Here

Mono BP4M FE Borehole Pump Performance Curve
PDF, 24 kB | Download

Mono BP4M FE Borehole Pump Element / 16mm Shaft, 50mm OutletR 12,806.40The Mono BP4M FE is a Mono BP4M FE progressive cavity (helical rotor) borehole pump element for a 16mm line shaft and 50mm column.At a glancePower: 0.5 kW at 0 m to 2.1 kW at 150 mMax. head: 150 mConnections: ...Add to Basket
