Wilo Atmos GIGA-N Bare-Shaft

Wilo Atmos GIGA-N Bare-Shaft

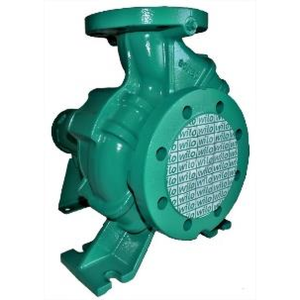

Single-stage, low-pressure centrifugal pump with axial suction, Supplied as Bare-Shaft pump. Applications: The pumping of heating water (in accordance with VD 2035), cold water and water-glycol mixtures without abrasive substances in heating, cold water and coolin systems. Applications for irrigation, building services, general industry, power stations, etc.

  • Energy-saving thanks to increased overall efficiency through improved hydraulics and the use of IE3 motors - IE4-motor as option
  • Suitable for drinking water supply (ACS-, UBA- DI compliant)
  • Cataphoretic coating of all cast components for ng high corrosion resistance and long service life (not available for the drinking water version)
  • Universally usable thanks to standardised dimensions, a range of motor options and impellers made of different materials
  • Easy maintenance thanks to user-friendly spacer coupling in back pull-out design
  • High operational reliability thanks to improved impeller construction for pressure reduction

Scope of delivery: Installation and operating instructions; Bare shaft pump or; Pump on baseplate with coupling and coupling guard with motor on request.

Select the model by the duty point (flow and head) of your installation and check the motor rating, connection size and mains supply against the specification table on each product page.

Models in this category

Prices include VAT and run from R 13 985.71 to R 66 314.28.
