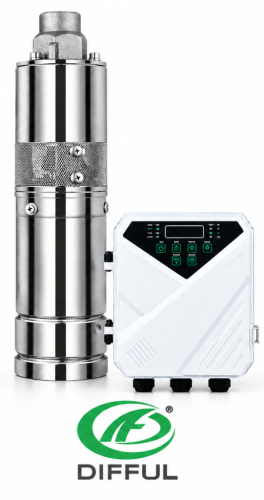

Difful 3DSS Solar Screw Borehole Pumps
Difful 3DSS Solar Screw Borehole Pumps
3-inch (76 mm) brushless DC solar screw borehole pumps for deep, low-yielding boreholes with no grid connection and no batteries. The model code reads flow – maximum head – voltage – motor watts: 3DSS1.2-56-24-120 is 1.2 m³/h, 56 m head, 24 V, 120 W.
Choose the series by the head you must lift and the daily water you need, then the cable length to reach the pump setting. Every system is supplied complete: pump, motor, MPPT solar controller with dry-run protection, float switch and submersible cable. Solar array capacity should be at least 1.3 times the pump watts.
Complete Specifications, Sizing and Price Guide Click Here.
