Mono BP65M - 100mm
Mono BP65M - 100mm

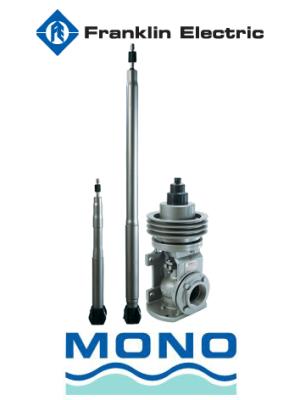

Mono BP65M progressive cavity (helical rotor) borehole pump element for a 100 mm column with 22 mm line shaft. Driven from the surface by a discharge head – no motor in the borehole – it gives a steady flow at any depth and handles sandy, silty and gassy water. Heads up to 150 m, absorbed power 3.5 kW at 0 m to 29 kW at 150 m, speed 300–1100 rpm.
| Column / outlet | 100 mm |
| Line shaft | 22 mm |
| Max. head | 150 m |
| Power at pump | 3.5 – 29 kW (0 – 150 m) |
| Speed | 300–1100 rpm |
| Sold as | pump element only – discharge head, column, line shaft and drive separate |
How to choose: read the flow at your head and speed from the performance curve, then add a discharge head, 100 mm column with 22 mm line shaft, and a drive. This page holds the pump element and its spare parts.
| Complete Spare Parts List, Prices and Fitment Guide – Click Here |
| Mono BP65M Borehole Pump Performance Curve PDF, 75 kB | Download |
