Mono BP65MH - 100mm
Mono BP65MH - 100mm

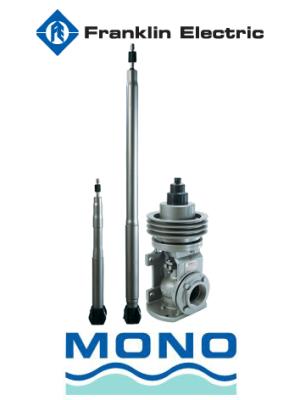

Mono BP65MH progressive cavity (helical rotor) borehole pump element for a 100 mm column with 25 mm line shaft. Driven from the surface by a discharge head – no motor in the borehole – it gives a steady flow at any depth and handles sandy, silty and gassy water. Heads up to 225 m, absorbed power 6 kW at 0 m to 46 kW at 225 m, speed 500–1100 rpm.
| Column / outlet | 100 mm |
| Line shaft | 25 mm |
| Max. head | 225 m |
| Power at pump | 6 – 46 kW (0 – 225 m) |
| Speed | 500–1100 rpm |
| Sold as | pump element only – discharge head, column, line shaft and drive separate |
How to choose: read the flow at your head and speed from the performance curve, then add a discharge head, 100 mm column with 25 mm line shaft, and a drive. This page holds the pump element and its spare parts.
| Complete Spare Parts List, Prices and Fitment Guide – Click Here |
| Mono BP65MH Borehole Pump Performance Curve PDF, 72 kB | Download |
