Orbit GW0304 FE - 40mm
Orbit GW0304 FE - 40mm

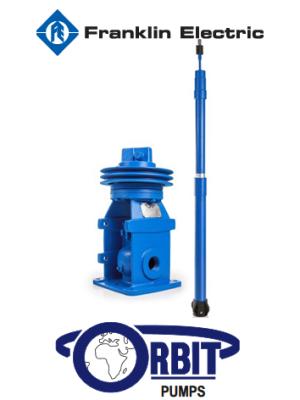

Orbit GW0304 FE progressive cavity (helical rotor) borehole pump element for a 40 mm column with 13 mm line shaft. Driven from the surface by a discharge head – no motor in the borehole – it gives a steady flow at any depth and handles sandy, silty and gassy water. Heads up to 300 m, absorbed power 0.5 kW at 0 m to 4.8 kW at 300 m, speed 700–1500 rpm.
| Column / outlet | 40 mm |
| Line shaft | 13 mm |
| Max. head | 300 m |
| Power at pump | 0.5 – 4.8 kW (0 – 300 m) |
| Speed | 700–1500 rpm |
| Sold as | pump element only – discharge head, column, line shaft and drive separate |
How to choose: read the flow at your head and speed from the performance curve, then add a discharge head, 40 mm column with line shaft, and a drive. This page holds the pump element and its spare parts.
| Complete Spare Parts List, Prices and Fitment Guide – Click Here |
| Orbit GW0304 FE Borehole Pump Performance Curve PDF, 28 kB | Download |
