Orbit GW2504 - 80mm
Orbit GW2504 - 80mm

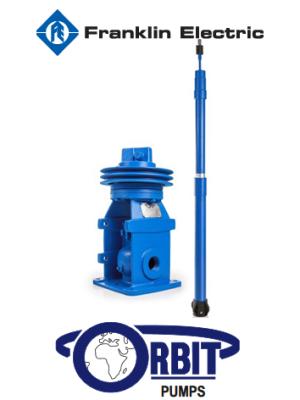

Orbit GW2504 progressive cavity (helical rotor) borehole pump element for a 80 mm column with 22 mm line shaft. Driven from the surface by a discharge head – no motor in the borehole – it gives a steady flow at any depth and handles sandy, silty and gassy water. Heads up to 300 m, absorbed power 4.5 kW at 0 m to 37 kW at 300 m.
| Column / outlet | 80 mm |
| Line shaft | 22 mm |
| Max. head | 300 m |
| Power at pump | 4.5 – 37 kW (0 – 300 m) |
| Sold as | pump element only – discharge head, column, line shaft and drive separate |
How to choose: read the flow at your head and speed from the performance curve, then add a discharge head, 80 mm column with line shaft, and a drive. This page holds the pump element.
| Complete Specifications, Sizing and Price Guide – Click Here |
| Orbit GW2504 Borehole Pump Performance Curve PDF, 86 kB | Download |
