Vansan VSP SS 8160 Submersible Pumps
VSP SS 8160 Submersible Pumps

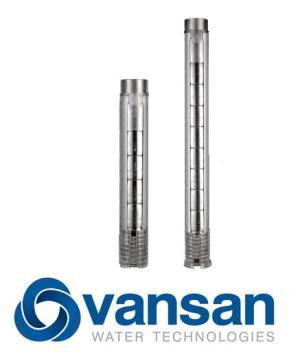

VSP SS 8160 Submersible Pumps - Vansan VSP stainless steel submersible borehole pumps with stainless steel impellers and diffusers.
The model code gives the nominal capacity and stages: VSP 6030-07 is a 6" pump, 30 m³/h, 7 stages. The pump end couples to a Vansan water-filled motor of the same kW (sold separately). The Vansan datasheet PDF below lists the pump and motor ranges.
Complete Specifications, Sizing and Price Guide Click Here.
Vansan VSP SS 08160 Technical Data & Hydraulic Performance Curve
148 kB | Download
Vansan 8in Submersible Pumps and Motors
398 kB | Download
- Vansan VSP 8160-12 – 150kW Stainless Steel 8
R 66,129.60Vansan VSP 8160-12 – 150kW Stainless Steel 8" Submersible Borehole Pump
Vansan VSP stainless steel 8" submersible borehole pumps (213 mm) for bulk water, mining and municipal supply.
Model specifications
Nominal flow160 m³/h
Stages12
Motor power150 kW
Horsepower200 ... - Vansan VSP 8160-1 – 11KW Submersible Pump
R 21,714.30Vansan VSP 8160-01 – 11kW Stainless Steel 8" Submersible Borehole Pump
Vansan VSP stainless steel 8" submersible borehole pumps (213 mm) for bulk water, mining and municipal supply.
Model specifications
Nominal flow160 m³/h
Stages1
Motor power11 kW
Horsepower15 ... - Vansan VSP 8160-2 – 22KW Submersible Pump
R 24,564.00Vansan VSP 8160-02 – 22kW Stainless Steel 8" Submersible Borehole Pump
Vansan VSP stainless steel 8" submersible borehole pumps (213 mm) for bulk water, mining and municipal supply.
Model specifications
Nominal flow160 m³/h
Stages2
Motor power22 kW
Horsepower30 ... - Vansan VSP 8160-3 – 37KW Submersible Pump
R 27,413.70Vansan VSP 8160-03 – 37kW Stainless Steel 8" Submersible Borehole Pump
Vansan VSP stainless steel 8" submersible borehole pumps (213 mm) for bulk water, mining and municipal supply.
Model specifications
Nominal flow160 m³/h
Stages3
Motor power37 kW
Horsepower50 ... - Vansan VSP 8160-4 – 45KW Submersible Pump
R 32,340.30Vansan VSP 8160-04 – 45kW Stainless Steel 8" Submersible Borehole Pump
Vansan VSP stainless steel 8" submersible borehole pumps (213 mm) for bulk water, mining and municipal supply.
Model specifications
Nominal flow160 m³/h
Stages4
Motor power45 kW
Horsepower60 ... - Vansan VSP 8160-5 – 55KW Submersible Pump
R 36,142.20Vansan VSP 8160-05 – 55kW Stainless Steel 8" Submersible Borehole Pump
Vansan VSP stainless steel 8" submersible borehole pumps (213 mm) for bulk water, mining and municipal supply.
Model specifications
Nominal flow160 m³/h
Stages5
Motor power55 kW
Horsepower75 ... - Vansan VSP 8160-6 – 67KW Submersible Pump
R 39,350.70Vansan VSP 8160-06 – 67kW Stainless Steel 8" Submersible Borehole Pump
Vansan VSP stainless steel 8" submersible borehole pumps (213 mm) for bulk water, mining and municipal supply.
Model specifications
Nominal flow160 m³/h
Stages6
Motor power67 kW
Horsepower90 ... - Vansan VSP 8160-7 – 92KW Submersible Pump
R 45,188.10Vansan VSP 8160-07 – 92kW Stainless Steel 8" Submersible Borehole Pump
Vansan VSP stainless steel 8" submersible borehole pumps (213 mm) for bulk water, mining and municipal supply.
Model specifications
Nominal flow160 m³/h
Stages7
Motor power92 kW
Horsepower100 ... - Vansan VSP 8160-8 – 92KW Submersible Pump
R 49,893.90Vansan VSP 8160-08 – 92kW Stainless Steel 8" Submersible Borehole Pump
Vansan VSP stainless steel 8" submersible borehole pumps (213 mm) for bulk water, mining and municipal supply.
Model specifications
Nominal flow160 m³/h
Stages8
Motor power92 kW
Horsepower100 ... - Vansan VSP 8160-10 – 110KW Submersible Pump
R 58,305.00Vansan VSP 8160-10 – 110kW Stainless Steel 8" Submersible Borehole Pump
Vansan VSP stainless steel 8" submersible borehole pumps (213 mm) for bulk water, mining and municipal supply.
Model specifications
Nominal flow160 m³/h
Stages10
Motor power110 kW
Horsepower150 ... - Vansan VSP 8160-11 – 130KW Submersible Pump
R 61,968.90Vansan VSP 8160-11 – 130kW Stainless Steel 8" Submersible Borehole Pump
Vansan VSP stainless steel 8" submersible borehole pumps (213 mm) for bulk water, mining and municipal supply.
Model specifications
Nominal flow160 m³/h
Stages11
Motor power130 kW
Horsepower175 ... - Vansan VSP 8160-13 – 147KW Submersible Pump
R 82,365.30Vansan VSP 8160-13 – 150kW Stainless Steel 8" Submersible Borehole Pump
Vansan VSP stainless steel 8" submersible borehole pumps (213 mm) for bulk water, mining and municipal supply.
Model specifications
Nominal flow160 m³/h
Stages13
Motor power150 kW
Horsepower200 ...
