Wilo ElectronicControl MM5
10693

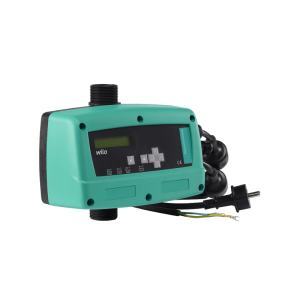

The Wilo ElectronicControl MM5 is a pump controller from the Wilo Pump Controllers range.
Specifications
| Parameter | Value |
|---|---|
| Brand | Wilo |
| Item code | 4160333 |
| Model | ElectronicControl MM5 |
| Series | Wilo Pump Controllers |
| Type | pump controller |
| Max. volume flow Q | 15 m³/h |
| Min. storage temperature | -10 °C |
| Max. storage temperature | 50 °C |
| Min. fluid temperature | 0 °C |
| Max. fluid temperature | 40 °C |
| Min. ambient temperature | 0 °C |
| Max. ambient temperature | 50 °C |
| Mains connection | 1~230 V, 50/60 Hz |
| Max. rated current per pump I | 5 A |
| Protection class | IP55 |
| Inlet connection | G 1¼ |
| Outlet connection | G 1¼ |
| Make | Wilo |
| Item no. | 4160333 |
Dimensions & Weight
| Dimension | Value |
|---|---|
| Length L | 262 mm |
| Width W | 178 mm |
| Height H | 196 mm |
| Net weight (approx.) | 3.2 kg |
| Gross weight (approx.) | 4 kg |
| Length with packaging | 300 mm |
| Width with packaging | 200 mm |
| Height with packaging | 270 mm |
Data from the Wilo online catalogue and the Wilo South Africa price list. Specifications may change without notice.
