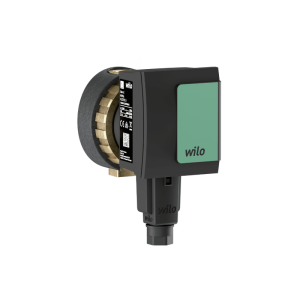

Wilo Star-Z NOVA Domestic Hot Water Circulator 230 V
11102
The Wilo Star-Z NOVA is a compact glandless circulator for domestic hot-water recirculation: it keeps hot water moving in the pipe loop so that hot water is at the tap immediately and no water is wasted. Brass housing for potable water, only 4 W power input, maintenance-free.
Overstock special: 327 available at a reduced price while stock lasts.
At a glance
Power: 4 WSupply: 230 VMax. head: 0.85 mMax. flow: 0.32 m³/hConnections: 1~230 V, 50 HzBest for: Domestic hot-water recirculation loops in houses and guesthouses, Geyser and solar hot-water systems with a return lineSpecifications
| Brand | Wilo |
| Item code | 4132760 |
| Model | Star-Z NOVA (ROW) |
| Type | Glandless domestic hot-water circulator |
| Mains connection | 1~230 V, 50 Hz |
| Power input P1 | 4 W |
| Current | 0.05 A |
| Max. head | 0.85 m |
| Max. flow | 0.32 m³/h |
| Max. operating pressure | 10 bar |
| Fluid temperature | 2 … 65 °C |
| Max. ambient temperature | 40 °C |
| Connections | G ½, PN 10 |
| Port to port | 84 mm |
| Protection class | IP42 |
| Insulation class | F |
| Housing | Brass |
| Impeller | PPE/PS 30 % GF |
| Shaft | Stainless steel |
| Voltage | 230 V |
Performance Table
| Flow Q m³/h | 0 | 0.08 | 0.16 | 0.24 | 0.32 |
|---|---|---|---|---|---|
| Head H m | 0.85 | 0.7 | 0.5 | 0.3 | 0.05 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Applications
- Domestic hot-water recirculation loops in houses and guesthouses
- Geyser and solar hot-water systems with a return line
Features
- Brass pump housing (CuZn40Pb2) approved for potable water
- Glandless wet-rotor design, maintenance-free, blocking-current proof – no motor protection needed
- Very low energy use: 4 W
- Compact 84 mm port-to-port length, G ½ connections
- Suitable for water up to 20 °dH hardness
Dimensions & Weight
| Parameter | Value |
|---|---|
| Port-to-port length | 84 mm |
| Mass | 0.9 kg |
| Shipping mass (approx.) | 1.2 kg |
Data from the Wilo Star-Z NOVA technical data sheet (performance read from the duty chart, approximate). Specifications may change without notice.
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Wilo Star-Z NOVA Domestic Hot Water Circulator 230 V?
The Wilo Star-Z NOVA Domestic Hot Water Circulator 230 V has a maximum head of 0.85 m.
How much water can the Wilo Star-Z NOVA Domestic Hot Water Circulator 230 V pump?
The Wilo Star-Z NOVA Domestic Hot Water Circulator 230 V pumps up to 0.32 m³/h.
What power supply does the Wilo Star-Z NOVA Domestic Hot Water Circulator 230 V need?
Supply: 230 V. Motor power: 4 W.
What are the pipe connections of the Wilo Star-Z NOVA Domestic Hot Water Circulator 230 V?
1~230 V, 50 Hz.
