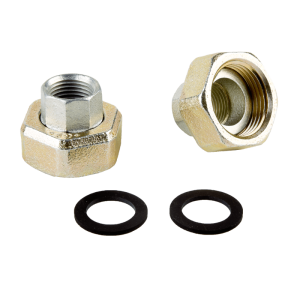

Wilo 15mm Unions Cast Iron Pipe Union
11106
The Wilo 15mm Unions Cast Iron is a pipe union from the Wilo Pipe Unions range.
Specifications
| Brand | Wilo |
| Item code | 4090808 |
| Model | 15mm Unions Cast Iron |
| Series | Wilo Pipe Unions |
| Type | pipe union |
| Inlet connection | G 1 |
| Outlet connection | Rp ½ |
| Max. fluid temperature | 110 °C |
| Material | EN-GJMW-400-5, yellow-coated |
| Quantity per order unit | 1 set |
| Make | Wilo |
| Item no. | 4090808 |
| Material nut | EN-GJMW-400-5, yellow-coated |
| Dimensions (W × L × H) | 7 × 8 × 2.4 cm |
| Weight | 0.3 kg |
Dimensions & Weight
| Dimension | Value |
|---|---|
| Length L | 0.04999999999996 mm |
| Width W | 100 mm |
| Height H | 150 mm |
| Net weight (approx.) | 0.2 kg |
| Gross weight (approx.) | 0.3 kg |
| Length with packaging | 80 mm |
| Width with packaging | 70 mm |
| Height with packaging | 24 mm |
Data from the Wilo catalogue. Specifications may change without notice.
