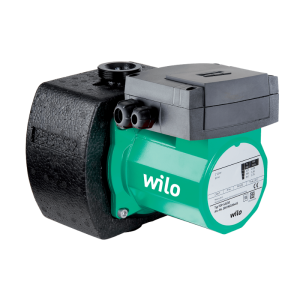

Wilo TOP-S 30/4 (1~230 V, PN 10) Glandless Circulator Pump
11113
The Wilo TOP-S 30/4 (1~230 V, PN 10) is a glandless heating circulator pump from the Wilo TOP-S range. Glandless circulator with screwed connection or flange connection.
Applications
- Hot-water heating systems of all kinds, industrial circulation systems, air-conditioning systems and closed cooling circuits
Features
- Direction of rotation signal lamp for displaying the correct sense of rotation (only with 3~)
- Manual power adjustment with 3 speed stages
- Pump housing with cataphoretic coating (KTL) protects against corrosion due to condensation formation
Specifications
| Parameter | Value |
|---|---|
| Brand | Wilo |
| Item code | 2044011 |
| Model | TOP-S 30/4 (1~230 V, PN 10) |
| Series | Wilo TOP-S |
| Type | glandless heating circulator pump |
| Pump connection | G 2 |
| Port-to-port length (mm) | 180 |
| Max. operating pressure (bar) | 10 |
| Mains connection | 1~230 V, 50 Hz |
| Maximum operating pressure PN | 10 bar |
| Min. fluid temperature Tmin | -20 °C |
| Max. fluid temperature Tmax | 130 °C |
| Emitted interference | EN 61000-6-3 |
| Interference resistance | EN 61000-6-2 |
| Power consumption P1 max | 180 W |
| Max. speed nmax | 2610 1/min |
| Rated current IN | 0.4 A |
| Protection class motor | IPX4D |
| Min. ambient temperature Tmin | -20 °C |
| Max. ambient temperature Tmax | 40 °C |
| Pump housing | Grey cast iron |
| Impeller | PPE-GF30 |
| Shaft | Stainless steel |
| Bearing | Carbon-graphite |
| Port-to-port length L0 | 180 mm |
Dimensions & Weight
| Dimension | Value |
|---|---|
| Length L | 180 mm |
| Width W | 176 mm |
| Height H | 221 mm |
| Net weight (approx.) | 4.6 kg |
| Gross weight (approx.) | 5.1 kg |
| Length with packaging | 270 mm |
| Width with packaging | 178 mm |
| Height with packaging | 215 mm |
Data from the Wilo online catalogue and the Wilo South Africa price list. Specifications may change without notice.
