Wilo TOP-S 40/15 2-SPEEDS (1~230 V, PN 6/10) Glandless Circulator Pump

R 23,839.99 incl. VATAdd to Basket

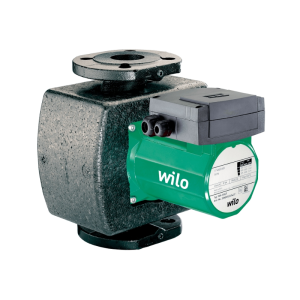

Wilo TOP-S 40/15 2-SPEEDS (1~230 V, PN 6/10) Glandless Circulator Pump image 1

The Wilo TOP-S 40/15 2-SPEEDS (1~230 V, PN 6/10) is a glandless heating circulator pump from the Wilo TOP-S range. Glandless circulator with screwed connection or flange connection.

Applications

  • Hot-water heating systems of all kinds, industrial circulation systems, air-conditioning systems and closed cooling circuits

Features

  • Direction of rotation signal lamp for displaying the correct sense of rotation (only with 3~)
  • Manual power adjustment with 3 speed stages
  • Pump housing with cataphoretic coating (KTL) protects against corrosion due to condensation formation

Specifications

ParameterValue
BrandWilo
Item code2165526
ModelTOP-S 40/15 2-SPEEDS (1~230 V, PN 6/10)
SeriesWilo TOP-S
Typeglandless heating circulator pump
Pump connectionDN 40
Port-to-port length (mm)250
Max. operating pressure (bar)10
Mains connection1~230 V, 50 Hz
Maximum operating pressure PN10 bar
Min. fluid temperature Tmin-20 °C
Max. fluid temperature Tmax130 °C
Emitted interferenceEN 61000-6-3
Interference resistanceEN 61000-6-2
Power consumption P1 max945 W
Max. speed nmax2800 1/min
Rated current IN4.57 A
Protection class motorIPX4D
Min. ambient temperature Tmin-20 °C
Max. ambient temperature Tmax40 °C
Pump housingGrey cast iron
ImpellerPP-LGF50
ShaftStainless steel
BearingCarbon-graphite
Port-to-port length L0250 mm
Previous model article number2080046
Previous model designationTOP-S 40/15 (1~230 V, PN 6/10) 2-SPEEDS

Dimensions & Weight

DimensionValue
Length L250 mm
Width W274 mm
Height H341 mm
Net weight (approx.)20.8 kg
Gross weight (approx.)22.6 kg
Length with packaging470 mm
Width with packaging320 mm
Height with packaging385 mm

Data from the Wilo online catalogue and the Wilo South Africa price list. Specifications may change without notice.
