Wilo Stratos PICO 15/1-6 PN 10 Glandless Circulator Pump

R 6,267.50 incl. VATAdd to Basket

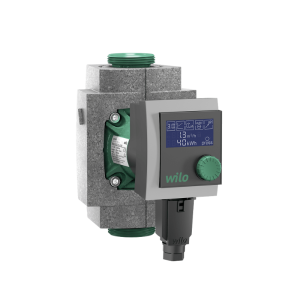

Wilo Stratos PICO 15/1-6 PN 10 Glandless Circulator Pump image 1

The Wilo Stratos PICO 15/1-6 PN 10 is a glandless high-efficiency circulator pump from the Wilo Stratos PICO range. Glandless circulator with screwed connection, blockingcurrent proof EC motor and integrated electronic power control.

At a glance

Power: 32 WMax. head: 6.0 mConnections: 0.5 mBest for: All hot-water heating systems, air-conditioning applications, industrial circulation systems

Specifications

BrandWilo
Item code4132461
ModelStratos PICO 15/1-6 PN 10
SeriesWilo Stratos PICO
Typeglandless high-efficiency circulator pump
Pump connectionG 1
Energy efficiency index (EEI)≤ 0.18
Port-to-port length130 mm
Max. operating pressure10 bar
Mains connection1~230 V, 50/60 Hz
Maximum operating pressure PN10 bar
Head max H max6.0 m
Flow max Q max3.7 m³/h
Minimum suction head at 50 °C m0.5 m
Minimum suction head at 95 °C m3 m
Minimum suction head at 110 °C10 m
Min. fluid temperature Tmin2 °C
Max. fluid temperature Tmax110 °C
Min. ambient temperature Tmin-10 °C
Max. ambient temperature Tmax40 °C
Energy efficiency index (EEI) *≤ 0.20
Rated power P232 W
Min. speed nmin800 1/min
Max. speed nmax4200 1/min
Power consumption P1 min3 W
Power consumption P1 max45 W
Emitted interferenceEN 61000-6-3
Interference resistanceEN 61000-6-2
Electromagnetic compatibilityEN 61800-3
Insulation classF
Protection classIPX4D
Threaded cable connection1 x PG11
Pump housingGrey cast iron
ImpellerPPE/PS-GF30
Port-to-port length L0130 mm
Successor model article number4216611
Dimensions (W × L × H)18.8 × 22.2 × 12.4 cm
Weight1.8 kg

Applications

  • All hot-water heating systems, air-conditioning applications, industrial circulation systems

Features

  • Easy to operate thanks to setting assistant, large display and Green Button Technology
  • Maximum energy efficiency through the combination of EC motor technology, Dynamic Adapt plus and precise adjustment options
  • Optional: Operation with mobile devices via Bluetooth with the Wilo-Smart Connect module BT
  • High reliability due to self-protection routines such as automatic dry-running protection and automatic restart
  • Easy monitoring of the current flow, current delivery head, power consumption and consumed kilowatt hours
  • Simple electrical installation thanks to the Wilo- Connector

Dimensions & Weight

DimensionValue
Length L174 mm
Width W130 mm
Height H81 mm
Net weight (approx.)1.7 kg
Gross weight (approx.)1.8 kg
Length with packaging222 mm
Width with packaging188 mm
Height with packaging124 mm

Data from the Wilo catalogue. Specifications may change without notice.

Need help choosing or want a price?

Our pump team will check the right size for your flow and head and give you a quote.

WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za

Frequently Asked Questions

What is the maximum head of the Wilo Stratos PICO 15/1-6 PN 10 Glandless Circulator Pump?

The Wilo Stratos PICO 15/1-6 PN 10 Glandless Circulator Pump has a maximum head of 6.0 m.

What is the motor power of the Wilo Stratos PICO 15/1-6 PN 10 Glandless Circulator Pump?

The motor power is 32 W.

What are the pipe connections of the Wilo Stratos PICO 15/1-6 PN 10 Glandless Circulator Pump?

0.5 m.
