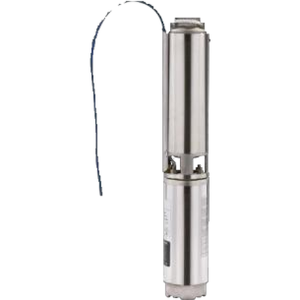

Wilo SPU4-01-19-B2 / 0.55kW 4” Submersible Borehole Pump
11538
The Wilo SPU4-01-19-B2 is a 4” submersible borehole pump with motor from the Wilo Sub SPU 4” range with a 0.55 kW motor rating. Multistage 4" submersible pump in jacketed construction for vertical and horizontal installation.
At a glance
Power: 0.55 kWMax. head: 126 mMax. flow: 1.5 m³/h (25 l/min)Best for: For water supply from boreholes and rainwater storage tanks, For domestic water supply, sprinkling and irrigation, Pressure boostingSpecifications
| Brand | Wilo |
| Item code | 2759003A |
| Model | SPU4-01-19-B2 |
| Series | Wilo Sub SPU 4” |
| Type | 4” submersible borehole pump with motor |
| Motor diameter (in) | 4 |
| Rated power P2 | 0.55 kW |
Performance Table
| Flow Q (m³/h) | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 |
|---|---|---|---|---|---|---|
| Flow Q (l/min) | 0 | 5 | 10 | 15 | 20 | 25 |
| Head H (m) | 126 | 118 | 105 | 86 | 60 | 30 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Wilo SPU4-01-19-B2:
Wilo SPU4-01 Performance Curves and Technical Data
387 kB | Download
Applications
- For water supply from boreholes and rainwater storage tanks
- For domestic water supply, sprinkling and irrigation
- Pressure boosting
- Lowering the water level
- For pumping water without long-fibre and abrasive constituents
Features
- Parts that come in contact with fluids are corrosion-free
- Integrated non-return valve
- Low-wearing due to floating impellers
- Maintenance-friendly motor
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Wilo SPU4-01-19-B2?
The Wilo SPU4-01-19-B2 has a maximum head of 126 m.
How much water can the Wilo SPU4-01-19-B2 pump?
The Wilo SPU4-01-19-B2 pumps up to 1.5 m³/h (25 l/min).
What is the motor power of the Wilo SPU4-01-19-B2?
The motor power is 0.55 kW.
