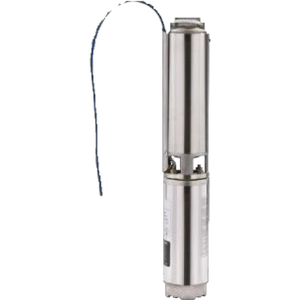

Wilo SPU4-02-07-B2 4” Borehole Pump End – for 0.37 kW motor
11542
The Wilo SPU4-02-07-B2 is a 4” multistage submersible borehole pump end from the Wilo Sub SPU4 range, built for a 0.37 kW 4” motor (motor and control box sold separately, or buy the complete set). Nominal flow 2 m³/h, 7 stages, maximum head about 46 m – made for household and small-holding supply from medium-depth boreholes.
Overstock special: 18 available at a reduced price while stock lasts.
At a glance
Power: 0.37 kWMax. head: 46 mMax. flow: 3 m³/h (50 l/min)Connections: Rp 1¼Best for: Water supply from boreholes and rainwater storage tanks, Domestic water supply, sprinkling and irrigation, Pressure boostingSpecifications
| Brand | Wilo |
| Item code | 2759014A |
| Model | SPU4-02-07-B2 |
| Type | 4” submersible borehole pump end (hydraulic part, no motor) |
| Nominal flow | 2 m³/h |
| Number of stages | 7 |
| Maximum head | 46 m |
| Required motor | 0.37 kW 4” NEMA submersible motor (230 V single-phase or 400 V three-phase) |
| Discharge connection | Rp 1¼ |
| Pump outside diameter | 98 mm |
| Impellers | Noryl (PPE), floating |
| Housing, shaft, strainer, check valve | Stainless steel 1.4301 / 304 |
| Max. sand content | 50 g/m³ |
| Max. fluid temperature | 30 °C |
| Max. immersion depth | 200 m |
| Protection class | IP68 |
| Max. starts per hour | 20 |
| Motor power | 0.37 kW |
Performance Table
| Flow Q (m³/h) | 0 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3 |
|---|---|---|---|---|---|---|---|---|---|
| Flow Q (l/min) | 0 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 |
| Head H (m) | 46 | 43 | 42 | 39 | 36 | 33 | 29 | 26 | 22 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Wilo SPU4-02-07-B2 4” Borehole Pump End – for 0.37 kW motor:
Wilo SPU4-02 Performance Curves and Technical Data
381 kB | Download
Applications
- Water supply from boreholes and rainwater storage tanks
- Domestic water supply, sprinkling and irrigation
- Pressure boosting
- Lowering the water level
- Pumping clean water without long-fibre or abrasive constituents
Features
- Multistage 4” submersible pump end (hydraulics only) with NEMA coupling for a standard 4” motor
- All parts in contact with water in stainless steel 1.4301 and Noryl (PPE) – corrosion-free
- Integrated non-return valve in the discharge head
- Floating Noryl impellers for low wear with sand content up to 50 g/m³
- Suitable for vertical or horizontal installation (cooling jacket for horizontal)
- Protection class IP68, max. immersion depth 200 m, fluid 3–30 °C
Dimensions & Weight
| Parameter | Value |
|---|---|
| Diameter | 98 mm |
| Pump end mass | 2.8 kg |
| Shipping mass (approx.) | 3.4 kg |
Hydraulic data from the Wilo SPU4 selection charts and data sheets. Pump end supplied without motor. Specifications may change without notice.
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Wilo SPU4-02-07-B2 4” Borehole Pump End – for 0.37 kW motor?
The Wilo SPU4-02-07-B2 4” Borehole Pump End – for 0.37 kW motor has a maximum head of 46 m.
How much water can the Wilo SPU4-02-07-B2 4” Borehole Pump End – for 0.37 kW motor pump?
The Wilo SPU4-02-07-B2 4” Borehole Pump End – for 0.37 kW motor pumps up to 3 m³/h (50 l/min).
What is the motor power of the Wilo SPU4-02-07-B2 4” Borehole Pump End – for 0.37 kW motor?
The motor power is 0.37 kW.
What are the pipe connections of the Wilo SPU4-02-07-B2 4” Borehole Pump End – for 0.37 kW motor?
Rp 1¼.
