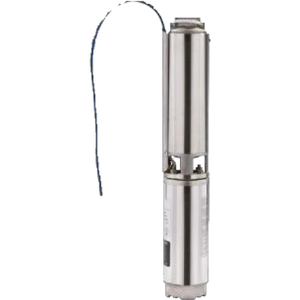

Wilo SPU4-09-08-B2 4” Borehole Pump End – for 1.5 kW motor
11563
The Wilo SPU4-09-08-B2 is a 4” multistage submersible borehole pump end from the Wilo Sub SPU4 range, built for a 1.5 kW 4” motor (motor and control box sold separately, or buy the complete set). Nominal flow 9 m³/h, 8 stages, maximum head about 52 m – made for irrigation and bulk water transfer.
Overstock special: 6 available at a reduced price while stock lasts.
At a glance
Power: 1.5 kWMax. head: 52 mMax. flow: 12 m³/h (200 l/min)Connections: Rp 1½Best for: Water supply from boreholes and rainwater storage tanks, Domestic water supply, sprinkling and irrigation, Pressure boostingSpecifications
| Brand | Wilo |
| Item code | 2759063A |
| Model | SPU4-09-08-B2 |
| Type | 4” submersible borehole pump end (hydraulic part, no motor) |
| Nominal flow | 9 m³/h |
| Number of stages | 8 |
| Maximum head | 52 m |
| Required motor | 1.5 kW 4” NEMA submersible motor (230 V single-phase or 400 V three-phase) |
| Discharge connection | Rp 1½ |
| Pump outside diameter | 98 mm |
| Impellers | Noryl (PPE), floating |
| Housing, shaft, strainer, check valve | Stainless steel 1.4301 / 304 |
| Max. sand content | 50 g/m³ |
| Max. fluid temperature | 30 °C |
| Max. immersion depth | 200 m |
| Protection class | IP68 |
| Max. starts per hour | 20 |
| Motor power | 1.5 kW |
Performance Table
| Flow Q (m³/h) | 0 | 4.8 | 5.4 | 6 | 7.2 | 8.4 | 9.6 | 10.8 | 12 |
|---|---|---|---|---|---|---|---|---|---|
| Flow Q (l/min) | 0 | 80 | 90 | 100 | 120 | 140 | 160 | 180 | 200 |
| Head H (m) | 52 | 47 | 45 | 44 | 41 | 37 | 31 | 25 | 18 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Wilo SPU4-09-08-B2 4” Borehole Pump End – for 1.5 kW motor:
Wilo SPU4-09 Performance Curves and Technical Data
406 kB | Download
Applications
- Water supply from boreholes and rainwater storage tanks
- Domestic water supply, sprinkling and irrigation
- Pressure boosting
- Lowering the water level
- Pumping clean water without long-fibre or abrasive constituents
Features
- Multistage 4” submersible pump end (hydraulics only) with NEMA coupling for a standard 4” motor
- All parts in contact with water in stainless steel 1.4301 and Noryl (PPE) – corrosion-free
- Integrated non-return valve in the discharge head
- Floating Noryl impellers for low wear with sand content up to 50 g/m³
- Suitable for vertical or horizontal installation (cooling jacket for horizontal)
- Protection class IP68, max. immersion depth 200 m, fluid 3–30 °C
Dimensions & Weight
| Parameter | Value |
|---|---|
| Diameter | 98 mm |
| Pump end mass | 4.0 kg |
| Shipping mass (approx.) | 4.6 kg |
Hydraulic data from the Wilo SPU4 selection charts and data sheets. Pump end supplied without motor. Specifications may change without notice.
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Wilo SPU4-09-08-B2 4” Borehole Pump End – for 1.5 kW motor?
The Wilo SPU4-09-08-B2 4” Borehole Pump End – for 1.5 kW motor has a maximum head of 52 m.
How much water can the Wilo SPU4-09-08-B2 4” Borehole Pump End – for 1.5 kW motor pump?
The Wilo SPU4-09-08-B2 4” Borehole Pump End – for 1.5 kW motor pumps up to 12 m³/h (200 l/min).
What is the motor power of the Wilo SPU4-09-08-B2 4” Borehole Pump End – for 1.5 kW motor?
The motor power is 1.5 kW.
What are the pipe connections of the Wilo SPU4-09-08-B2 4” Borehole Pump End – for 1.5 kW motor?
Rp 1½.
