Wilo SPU4-14-07-B2 / 1.5kW 4” Submersible Borehole Pump

R 2,458.12 incl. VATAdd to Basket

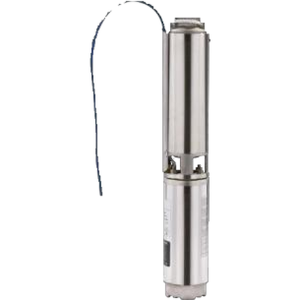

Wilo SPU4-14-07-B2 / 1.5kW 4” Submersible Borehole Pump image 1

The Wilo SPU4-14-07-B2 is a 4” submersible borehole pump with motor from the Wilo Sub SPU 4” range with a 1.5 kW motor rating. Multistage 4" submersible pump in jacketed construction for vertical and horizontal installation.

At a glance

Power: 1.5 kWMax. head: 45 mMax. flow: 15.6 m³/h (260 l/min)Best for: For water supply from boreholes and rainwater storage tanks, For domestic water supply, sprinkling and irrigation, Pressure boosting

Specifications

BrandWilo
Item code2759081A
ModelSPU4-14-07-B2
SeriesWilo Sub SPU 4”
Type4” submersible borehole pump with motor
Motor diameter (in)4
Rated power P21.5 kW

Performance Table

Flow Q (m³/h)067.28.49.610.81213.214.415.6
Flow Q (l/min)0100120140160180200220240260
Head H (m)45373633312825221814

Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.

Performance Curves and Technical Data (PDF)

Download the curve sheet with the performance curves, dimensions and technical data for the Wilo SPU4-14-07-B2:



Wilo SPU4-14 Performance Curves and Technical Data

389 kB  |  Download

Applications

  • For water supply from boreholes and rainwater storage tanks
  • For domestic water supply, sprinkling and irrigation
  • Pressure boosting
  • Lowering the water level
  • For pumping water without long-fibre and abrasive constituents

Features

  • Parts that come in contact with fluids are corrosion-free
  • Integrated non-return valve
  • Low-wearing due to floating impellers
  • Maintenance-friendly motor

Need help choosing or want a price?

Our pump team will check the right size for your flow and head and give you a quote.

WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za

Frequently Asked Questions

What is the maximum head of the Wilo SPU4-14-07-B2?

The Wilo SPU4-14-07-B2 has a maximum head of 45 m.

How much water can the Wilo SPU4-14-07-B2 pump?

The Wilo SPU4-14-07-B2 pumps up to 15.6 m³/h (260 l/min).

What is the motor power of the Wilo SPU4-14-07-B2?

The motor power is 1.5 kW.
