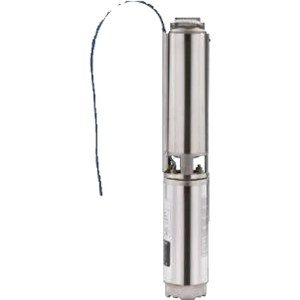

Wilo SPU4-16-11-B2 / 3kW 4” Submersible Borehole Pump
11576
The Wilo SPU4-16-11-B2 is a 4” submersible borehole pump with motor from the Wilo Sub SPU 4” range with a 3 kW motor rating. Multistage 4" submersible pump in jacketed construction for vertical and horizontal installation.
At a glance
Power: 3 kWMax. head: 67 mMax. flow: 24 m³/h (400 l/min)Best for: For water supply from boreholes and rainwater storage tanks, For domestic water supply, sprinkling and irrigation, Pressure boostingSpecifications
| Brand | Wilo |
| Item code | 2759092A |
| Model | SPU4-16-11-B2 |
| Series | Wilo Sub SPU 4” |
| Type | 4” submersible borehole pump with motor |
| Motor diameter (in) | 4 |
| Rated power P2 | 3 kW |
Performance Table
| Flow Q (m³/h) | 0 | 8.4 | 10.8 | 13.2 | 15.6 | 18 | 20.4 | 22.8 | 24 |
|---|---|---|---|---|---|---|---|---|---|
| Flow Q (l/min) | 0 | 140 | 180 | 220 | 260 | 300 | 340 | 380 | 400 |
| Head H (m) | 67 | 56 | 50 | 45 | 39 | 33 | 27 | 20 | 16 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Wilo SPU4-16-11-B2:
Wilo SPU4-16 Performance Curves and Technical Data
389 kB | Download
Applications
- For water supply from boreholes and rainwater storage tanks
- For domestic water supply, sprinkling and irrigation
- Pressure boosting
- Lowering the water level
- For pumping water without long-fibre and abrasive constituents
Features
- Parts that come in contact with fluids are corrosion-free
- Integrated non-return valve
- Low-wearing due to floating impellers
- Maintenance-friendly motor
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Wilo SPU4-16-11-B2?
The Wilo SPU4-16-11-B2 has a maximum head of 67 m.
How much water can the Wilo SPU4-16-11-B2 pump?
The Wilo SPU4-16-11-B2 pumps up to 24 m³/h (400 l/min).
What is the motor power of the Wilo SPU4-16-11-B2?
The motor power is 3 kW.
