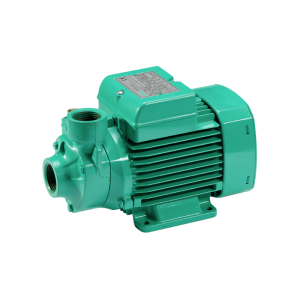

Wilo HiPeri 1-5 / 0.55kW Peripheral Pump
11965
The Wilo HiPeri 1-5 is a peripheral pump from the Wilo HiPeri range with a 0.55 kW motor rating. Non-self-priming peripheral pump.
At a glance
Power: 0.55 kWSupply: ±10 %Max. head: 49.9 mMax. flow: 2.4 m³/hConnections: Rp 1Best for: Water distribution/boosting, Raw water intake, Sprinkling and sprayingSpecifications
| Brand | Wilo |
| Item code | 4186198 |
| Model | HiPeri 1-5 |
| Series | Wilo HiPeri |
| Type | peripheral pump |
| Connection | 1~230 V, 50 Hz |
| Rated power P2 | 0.55 kW |
| Maximum operating pressure PN | 7 bar |
| Discharge port | Rp 1 |
| Min. fluid temperature Tmin | 5 °C |
| Max. fluid temperature Tmax | 60 °C |
| Min. ambient temperature Tmin | 5 °C |
| Max. ambient temperature Tmax | 40 °C |
| Mains connection | 1~230 V, 50 Hz |
| Voltage tolerance | ±10 % |
| Rated power P2 | 0.55 kW |
| Rated current IN | 3.7 A |
| Rated speed n | 2900 1/min |
| Insulation class | F |
| Protection class | X4 |
| Pump housing | Grey cast iron |
| Impeller | Brass, CW617N |
| Shaft | Stainless steel |
| Shaft seal | BVPFF |
| Gasket material | NBR |
| Pipe connection, suction side DNs | Rp 1 |
| Pipe connection, discharge side DNd | Rp 1 |
| Dimensions (W × L × H) | 13.5 × 25.9 × 17.3 cm |
| Weight | 6.6 kg |
Performance Table
| Flow (m³/h) | 0.3 | 0.5 | 0.75 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2.25 | 2.4 |
|---|---|---|---|---|---|---|---|---|---|---|
| Head (m) | 49.9 | 46.4 | 41.8 | 37 | 32.1 | 27.3 | 22.5 | 17.8 | 13.4 | 10.9 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Wilo HiPeri 1-5:
Wilo HiPeri 1-5 Performance Curve (50 Hz)
19 kB | Download
Applications
- Water distribution/boosting
- Raw water intake
- Sprinkling and spraying
- Rainwater utilisation
Features
- Easy handling due to its light weight, perfect for continuous operation
- Brass impeller for fluids up to 60 °C and ambient temperatures up to 40 °C
- Efficiently thanks to low power consumption with high maximum delivery head and high maximum volume flow
- Up to 7 m negative suction head
- Expandable with electronic control of pumps Wilo-HiControl 1
Dimensions & Weight
| Dimension | Value |
|---|---|
| Length L | 232 mm |
| Width W | 118 mm |
| Height H | 152 mm |
| Net weight (approx.) | 6.4 kg |
| Gross weight (approx.) | 6.6 kg |
| Length with packaging | 259 mm |
| Width with packaging | 135 mm |
| Height with packaging | 173 mm |
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Wilo HiPeri 1-5?
The Wilo HiPeri 1-5 has a maximum head of 49.9 m.
How much water can the Wilo HiPeri 1-5 pump?
The Wilo HiPeri 1-5 pumps up to 2.4 m³/h.
What power supply does the Wilo HiPeri 1-5 need?
Supply: ±10 %. Motor power: 0.55 kW.
What are the pipe connections of the Wilo HiPeri 1-5?
Rp 1.
