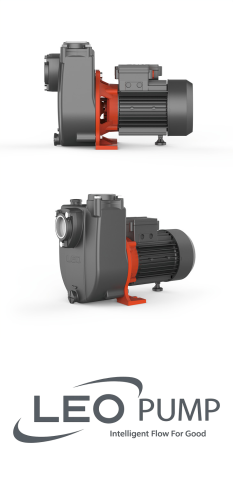

Leo XHS1500 / 1.1KW 400V Centrifugal Self-Priming Pump And Motor
12069
Introducing the LEO XHS(m)1500, a robust self-priming centrifugal pump engineered for reliable water transfer across agricultural, industrial, and domestic applications. Designed to handle clean water and liquids with similar physical and chemical properties, this pump excels at drawing water from lakes, rivers, and wells with its impressive 8-meter maximum suction capability, making it an ideal choice for irrigation systems, water supply projects, and general-purpose liquid handling.
Built with a heavy-duty cast iron pump body and support featuring special anti-rust treatment, the XHS(m)1500 combines durability with dependable performance in challenging environments. Its corrosion-resistant A087 304 stainless steel shaft, copper-wound motor with integrated thermal protection, and low-noise long-life bearings ensure years of trouble-free operation, while the IPX4 enclosure rating and F-class insulation provide excellent protection against moisture and temperature fluctuations up to 60 degC liquid and 50 degC ambient conditions.
At a glance
Power: 1.1 kW (1.5 HP)Supply: 400 V three-phase, 50 HzMax. head: 15 mMax. flow: 16.2 m³/h (270 l/min)Connections: 2"Specifications
| Brand | Leo |
| Model | XHS1500 |
| Catalogue model | XHSm1500 (same hydraulics) |
| Type | XHSm/XHS Self-priming Centrifugal Pump |
| Motor power | 1.1 kW (1.5 HP) |
| Supply | 400 V three-phase, 50 Hz |
| Inlet / outlet | 2" |
| Shut-off head | 15 m |
| Flow range | 0 – 16.2 m³/h (0 – 270 l/min) |
| Dimensions (W × L × H) | 27.5 × 47 × 37 cm |
| Weight | 34.5 kg |
| Item code | XHS1500(380V) |
Performance Table
| Flow Q (m³/h) | 0 | 2.1 | 4.5 | 6.6 | 8.1 | 10.2 | 12 | 14.4 | 16.2 |
|---|---|---|---|---|---|---|---|---|---|
| Flow Q (l/min) | 0 | 35 | 75 | 110 | 135 | 170 | 200 | 235 | 270 |
| Head H (m) | 15 | 14 | 12.5 | 11 | 10 | 8.5 | 7 | 5 | 2.5 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Leo XHS1500:
Leo XHSm/XHS Self-priming Centrifugal Pump – Performance Curves and Technical Data (01-DOMESTIC PUMP catalogue p33)
276 kB | Download
Applications
- Can be used to transfer clean water or other liquids similar to water in physical and chemical properties
- Suitable for pumping water from lake, river and well
- Industrial use and agricultural irrigation
Pump
- Cast iron pump body and support under special anti-rust treatment
- AISI 304 shaft
- Max. liquid temperture: +60 degC
- Max.suction: +8m
Motor
- Low noise&Long life bearing
- Motor with copper winding
- Built-in thermal protector for single phase motor
- Insulation class: F
- Enclosures class: IPX4
- Max. ambient temperture: +50 degC
- IE 2 motor (Three phase, power >= 0.75kW)
Model Code: XHS1500(380V)
- XHS - Self-priming Centrifugal Pump
- m - Single Phase Motor (Omitted for three-phase motor)
- 1500 - Power (HPx1000)
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Leo XHS1500?
The Leo XHS1500 has a maximum head of 15 m.
How much water can the Leo XHS1500 pump?
The Leo XHS1500 pumps up to 16.2 m³/h (270 l/min).
What power supply does the Leo XHS1500 need?
Supply: 400 V three-phase, 50 Hz. Motor power: 1.1 kW (1.5 HP).
What are the pipe connections of the Leo XHS1500?
2".
