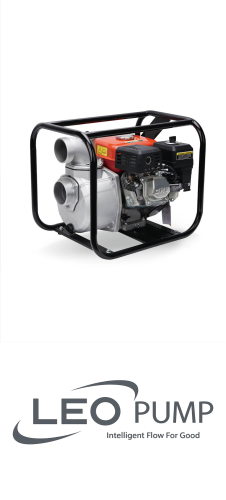

Leo LGP20-H / 6.5HP Gasoline Pump And Engine
12089
The LEO LGP20-H is a robust gasoline water pump engineered for demanding water transfer applications across factories, mines, municipal facilities, and agricultural irrigation systems. Built on the reliable LGP Gasoline Water Pump 3 series, this high-head model excels at moving clean water over longer distances and greater heights, making it the go-to choice for projects requiring extended suction capabilities and elevated discharge points.
Constructed with an anti-rust cast iron diffuser and equipped with an efficient hydraulic impeller system, the LGP20-H delivers exceptional performance while maintaining low fuel consumption. The pump is powered by a dependable single-cylinder, 4-stroke air-cooled LEO engine producing 6.5 HP, complete with a protective low oil shut-off system, and features a portable, ergonomic frame that doesn't compromise on durability or longevity, with optional BS or Honda engine configurations available to suit your specific needs.
At a glance
Power: 4.85 kW (6.5 HP)Max. head: 60 mMax. flow: 30 m³/h (500 l/min)Connections: 2" / 2" + 2x1.5"Specifications
| Brand | Leo |
| Model | LGP20-H |
| Type | LGP-H / LGP-2H High Head Gasoline Pump |
| Motor power | 4.85 kW (6.5 HP) |
| Inlet / outlet | 2" / 2" + 2x1.5" |
| Shut-off head | 60 m |
| Flow range | 0 – 30 m³/h (0 – 500 l/min) |
| Dimensions (W × L × H) | 41.2 × 47 × 43.2 cm |
| Weight | 23.22 kg |
| Item code | LGP20-H |
Performance Table
| Flow Q (m³/h) | 0 | 5 | 10 | 15 | 20 | 25 | 30 |
|---|---|---|---|---|---|---|---|
| Flow Q (l/min) | 0 | 83 | 167 | 250 | 333 | 417 | 500 |
| Head H (m) | 60 | 56.5 | 51.5 | 44.5 | 35 | 20 | 5 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Leo LGP20-H:
Leo LGP-H / LGP-2H High Head Gasoline Pump – Performance Curves and Technical Data (02-GASOLINE WATER PUMP catalogue p9)
356 kB | Download
Applications
- To transfer clean water with liquid temperature between 0 and 40
- Application in water supply and drainage for factories, mines, municipal facilities as well as field irrigation, etc.
- Suitable for longer distance and greater height water transfer
Features
- New unique design with ergonomic feature
- Portable and compact pump frame
- High quality motor with excellent performance and long service life
- Impeller designed with high efficient hydraulic system
- Low fuel consumption
- LEO engine as default, BS/Honda engine is optional
Pump
- Anti-rust cast iron diffuser
- Max.Suction: 8 m, Suck 5 m needs 120 s
- Inlet/outlet: 50 mm/2 x 38 mm+1 x 50 mm 38 mm/1 x 38 mm+2 x 25 mm
Engine
- Single cylinder, 4-stroke, Air-cooled
- Max.power: 6.5 HP
- Rated speed: 3600 rpm
- Reliable engine equiped with low engine oil shut off system
Model Code: LGP20-H
- L - LEO Product Style
- GP - Gasoline Water Pump
- 20 - Inlet/Outlet Diameter
- H - High Head
- GX200 - Engine
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Leo LGP20-H?
The Leo LGP20-H has a maximum head of 60 m.
How much water can the Leo LGP20-H pump?
The Leo LGP20-H pumps up to 30 m³/h (500 l/min).
What is the motor power of the Leo LGP20-H?
The motor power is 4.85 kW (6.5 HP).
What are the pipe connections of the Leo LGP20-H?
2" / 2" + 2x1.5".
