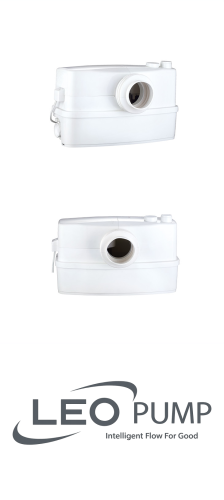

Leo 0.6KW 230V Toilet Domestic Lifting Station Pump Only
12123
The LEO WC600A is a compact domestic lifting station designed to pump wastewater from basements, bathrooms, and other areas below sewer level where gravity drainage isn't possible. This reliable lifting pump handles wastewater from toilets, washing machines, dishwashers, and bathtubs, making it ideal for renovations of residential and commercial spaces where plumbing fixtures are located remotely from the main soil pipe or installed in below-grade bathrooms.
Built with German-engineered components including a premium air switch and carbon filter, the WC600A features an efficient cutting blade that reliably processes wastewater containing toilet paper and solids. Its compact, wall-mounted design combines ease of installation with automatic start-stop operation, low-noise performance, and intelligent circuit board protection including time delay and low voltage functions, delivering dependable operation for domestic wastewater applications.
At a glance
Power: 0.6 kWSupply: 230 V single-phase, 50 HzMax. head: 8.5 mMax. flow: 5.1 m³/h (85 l/min)Connections: Outlet stepped outlet 22/25/28/32/36/40 mmSpecifications
| Brand | Leo |
| Model | 0.6KW 230V Toilet Domestic Lifting Station Pump Only |
| Catalogue model | WC600A |
| Type | WC600A Domestic Lifting Station |
| Motor power | 0.6 kW |
| Supply | 230 V single-phase, 50 Hz |
| Connection | Outlet stepped outlet 22/25/28/32/36/40 mm |
| Shut-off head | 8.5 m |
| Flow range | 0 – 5.1 m³/h (0 – 85 l/min) |
| Dimensions (W × L × H) | 21.5 × 49.5 × 37.4 cm |
| Weight | 9.6 kg |
| Item code | WC-600A(220V) |
Performance Table
| Flow Q (m³/h) | 0 | 2.4 | 3 | 3.6 | 4.5 | 4.8 | 5.1 |
|---|---|---|---|---|---|---|---|
| Flow Q (l/min) | 0 | 40 | 50 | 60 | 75 | 80 | 85 |
| Head H (m) | 8.5 | 7.5 | 6.5 | 6 | 4.5 | 4 | 3.3 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Leo 0.6KW 230V Toilet Domestic Lifting Station Pump Only:
Leo WC600A Domestic Lifting Station – Performance Curves and Technical Data (01-DOMESTIC PUMP catalogue p46)
274 kB | Download
Applications
- The lifting station is suitable for pumping of wastewater off places in private dwellings and basements where wastewater cannot be led directly to the sewer by means of a natural downward slope.
- Renovation of offices or other commercial buildings.
- Wall-mounted toilets in basements below sewer level.
- Washing machines & dish washers.
- Toilets, wash basins, bathtubs and cabinet showers in the bathrooms where the location may be remote from the main soil pipe so that a natural slope cannot be established.
Features
- Compact and slim for easy installation
- Automatic start and stop
- Top quality air switch and carbon filter from Germany
- Circuit board with time delay function and low voltage protection
- Low noise
- New blade and support with better cutting performance
- Suitable for sewage water containing toilet paper and faeces with cutting blade
Operating Conditions
- Max. liquid temperature: 50 degC
- Max. ambient temperature: 35 degC
- PH value: 4 - 10
- The pump must not be used for strong chemicals or solvents
Model Code: WC-600A(220V)
- WC - Domestic Lifting Station
- 60 - Power (x10W)
- 0 - Improve
- A - Symbol for Product Optimization
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Leo 0.6KW 230V Toilet Domestic Lifting Station Pump Only?
The Leo 0.6KW 230V Toilet Domestic Lifting Station Pump Only has a maximum head of 8.5 m.
How much water can the Leo 0.6KW 230V Toilet Domestic Lifting Station Pump Only pump?
The Leo 0.6KW 230V Toilet Domestic Lifting Station Pump Only pumps up to 5.1 m³/h (85 l/min).
What power supply does the Leo 0.6KW 230V Toilet Domestic Lifting Station Pump Only need?
Supply: 230 V single-phase, 50 Hz. Motor power: 0.6 kW.
What are the pipe connections of the Leo 0.6KW 230V Toilet Domestic Lifting Station Pump Only?
Outlet stepped outlet 22/25/28/32/36/40 mm.
