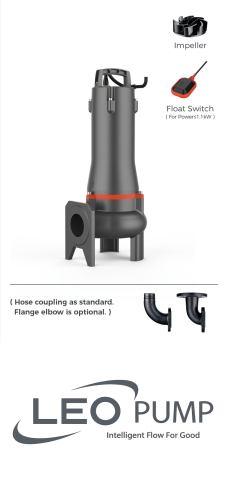

Leo 50SWU13.2-4 - 0.37KW 230V Submersible Sewage Pumps

The LEO 50SWU13.2-4-0.37 is a SWU submersible sewage pump with semi-open vortex impeller with a DN50 discharge, delivering 13.2 m³/h at 4 m head with a 0.37 kW 230V single-phase motor. It handles raw sewage, wastewater and dirty water with solids, for municipal, industrial, mining and building drainage.

Application

• Drainage of wastewater from the attenuation tank, purifying tank and sewage tank in water treatment plant
• Drainage of waste water containing fibrous additives from leather factory and food processing factory
• Sewage management, accumulated water, septic tank, stock farm
• Pumping sewage from hotels, restaurants, schools and public buildings

Pump

• Open vortex impeller, suitable for liquid containing impurities and long fiber substance
• Flexible installations with hoses, pipes or quick-coupling systems
• Float switch is standard accessory for single phase (≤1.1 kW)
• Cable Length: 10 m
• Double-end mechanical seal
• Stainless steel welded shaft
• Liquid temperature: 0 – 40°C
• Liquid PH value: 4 – 10
• Max. immersion depth: 10 m

Motor

• Frequency/Pole number: 50 Hz/2
• Insulation class: F
• Enclosures class: IP68
• Bearing: Ball type

Identification Codes

• 50 = Discharge Diameter (mm)
• SW = Submersible Sewage Pump
• U = Semi-open Vortex Impeller
• m = Single Phase Motor (Omitted for three-phase motor)
• Flow = Rated Flow (m³/h)
• Head = Rated Head (m)
• Power = Rated Power (kW)
• L = Cable Length (10 m)
