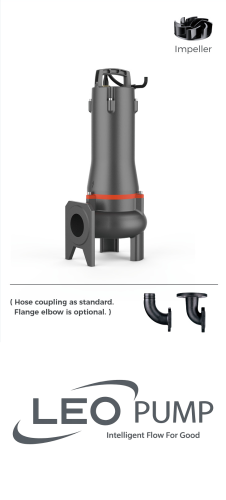

Leo 65SWUm24-12.5-2.2 / 2.2KW 230V Submersible Sewage Pump And Motor
12177
The LEO 65SWUm24-12.5-2.2 is a powerful submersible sewage pump delivering 24 m³/h at 12.5 m head with a 2.2 kW motor, designed for high-head sewage drainage in water treatment plants and commercial facilities. Its semi-open vortex impeller ensures dependable performance when handling solids and fibrous materials commonly found in municipal and industrial sewage streams.
At a glance
Power: 2.2 kW (3 HP)Supply: 230 V single-phase, 50 HzMax. head: 17.1 mMax. flow: 40 m³/h (667 l/min)Connections: Outlet 65 (2.5")Specifications
| Brand | Leo |
| Model | 65SWUm24-12.5-2.2 |
| Catalogue model | 65SWU24-12.5-2.2 (same hydraulics) |
| Type | SWU Submersible Sewage Pump 65SWU |
| Motor power | 2.2 kW (3 HP) |
| Supply | 230 V single-phase, 50 Hz |
| Connection | Outlet 65 (2.5") |
| Max. solids passage | 55 mm |
| Shut-off head | 17.1 m |
| Flow range | 0 – 40 m³/h (0 – 667 l/min) |
| Dimensions (W × L × H) | 28.4 × 92.4 × 36.3 cm |
| Weight | 49 kg |
| Item code | 65SWUm24-12.5-2.2(220V) |
Performance Table
| Flow Q (m³/h) | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 |
|---|---|---|---|---|---|---|---|---|---|
| Flow Q (l/min) | 0 | 83 | 167 | 250 | 333 | 417 | 500 | 583 | 667 |
| Head H (m) | 17.1 | 16.5 | 15.8 | 15 | 13.8 | 12.4 | 11.1 | 9.7 | 8.3 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Leo 65SWUm24-12.5-2.2:
Leo SWU Submersible Sewage Pump 65SWU – Performance Curves and Technical Data (03-SUBMERSIBLE PUMP catalogue p8)
303 kB | Download
Applications
- Drainage of wastewater from the attenuation tank, purifying tank and sewage tank in water treatment plant
- Drainage of waste water containing fibrous additives from leather factory and food processing factory
- Sewage management, accumulated water, septic tank, stock farm
- Pumping sewage from hotels, restaurants, schools and public buildings
Pump
- Open vortex impeller, suitable for liquid containing impurities and long fiber substance
- Flexible installations with hoses, pipes or quick-coupling systems
- Double-end mechanical seal
- Stainless steel welded shaft
- Liquid temperature: 0 – 40°C
- Liquid PH value: 4 – 10
- Max. immersion depth: 10 m
Motor
- Frequency/Pole number: 50 Hz/2
- Insulation class: F
- Enclosures class: IP68
- Bearing: Ball type
Model Code: 65SWUm24-12.5-2.2(220V)
- 65 = Discharge Diameter (mm)
- SW = Submersible Sewage Pump
- U = Semi-open Vortex Impeller
- m = Single Phase Motor (Omitted for three-phase motor)
- Flow = Rated Flow (m³/h)
- Head = Rated Head (m)
- Power = Rated Power (kW)
- L = Cable Length (10 m)
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Leo 65SWUm24-12.5-2.2?
The Leo 65SWUm24-12.5-2.2 has a maximum head of 17.1 m.
How much water can the Leo 65SWUm24-12.5-2.2 pump?
The Leo 65SWUm24-12.5-2.2 pumps up to 40 m³/h (667 l/min).
What power supply does the Leo 65SWUm24-12.5-2.2 need?
Supply: 230 V single-phase, 50 Hz. Motor power: 2.2 kW (3 HP).
What are the pipe connections of the Leo 65SWUm24-12.5-2.2?
Outlet 65 (2.5").
