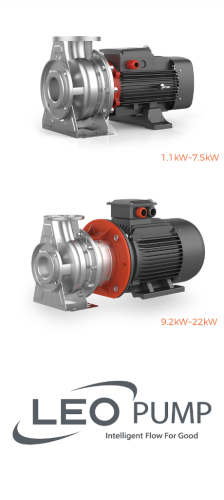

Leo XZS50-32-160-22 / 2.2KW 400V Centrifugal Pump And Motor
12224
Introducing the LEO XZS50-32-160/22 stainless steel centrifugal pump, a versatile workhorse engineered for demanding water supply, industrial pressure boosting, and water treatment applications. This standard centrifugal pump excels in municipal waterworks, regional water supply systems, boiler feeding, cooling systems, and agricultural irrigation, while also handling light acid and alkali liquids across petrochemical, pharmaceutical, and sanitation industries. Its robust design makes it the go-to choice for applications requiring reliable flow rates from 0.7 to 132 m3/h and operating heads up to 58 meters.
Constructed entirely from AISI stainless steel, this pump delivers superior corrosion resistance and durability in challenging environments while maintaining the purity of transported liquids. Built-in features include a totally enclosed, fan-cooled IE2 motor with IP55 protection rating and F-class insulation, ensuring safe operation across ambient temperatures from -15 degC to +40 degC and liquid temperatures up to +80 degC. Ideal for water filtration systems, separators, swimming pools, distillation equipment, and pressure-boosting applications, the XZS50-32-160/22 combines stainless steel construction with intelligent thermal management to deliver consistent performance in industrial, municipal, and agricultural settings.
At a glance
Power: 2.2 kW (3 HP)Supply: 400 V three-phase, 50 HzMax. head: 37 mMax. flow: 20 m³/h (333 l/min)Connections: DN50 flange / DN32 flangeSpecifications
| Brand | Leo |
| Model | XZS50-32-160-22 |
| Type | XZS Stainless Steel Standard Centrifugal Pump |
| Motor power | 2.2 kW (3 HP) |
| Supply | 400 V three-phase, 50 Hz |
| Inlet / outlet | DN50 flange / DN32 flange |
| Shut-off head | 37 m |
| Flow range | 0 – 20 m³/h (0 – 333 l/min) |
| Dimensions (W × L × H) | 32 × 55 × 38 cm |
| Weight | 37 kg |
| Item code | XZS50-32-160-22(380V) |
Performance Table
| Flow Q (m³/h) | 0 | 6 | 9 | 12 | 18 | 20 |
|---|---|---|---|---|---|---|
| Flow Q (l/min) | 0 | 100 | 150 | 200 | 300 | 333 |
| Head H (m) | 37 | 33.5 | 32.5 | 32 | 28.5 | 27 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Leo XZS50-32-160-22:
Leo XZS50-32-160 / XZS50-32-200 / XZS65-40-200 Stainless Steel Centrifugal Pump – Performance Curves and Technical Data (04-COMMERCIAL PUMP catalogue p57, 58, 62)
981 kB | Download
Applications
- Water supply: filtration and transfer at waterworks, regional water supply and pressure boosting in main pipe
- Industrial pressure boosting: Water system, cleaning system
- Industrial water supply: boiler feeding, cooling system, air conditioning, transportation of light acid and alkali liquid
- Water treatment: distillation systems, separators, swimming pools
- Agricultural irrigation, petrochemical industry, medicine and sanitation, etc.
Operating Conditions
- Thin, clean, non-flammable and explosive, not containing the liquid with solid particles and fibers
- Liquid temperature: -15 - +80
- Flow range: 0.7 - 132 m3/h
- Head range: 9 - 58 m
- Ambient temperature range: -15 - + 40
- Max. operating pressure: 10 bar
- Altitude: up to 1000 m
- Liquid PH valve: 3 - 9
- Max.ambient temperature: +40
Motor
- IE2 Motor (IE3 motor available on request for power>=9.2kw)
- Totally enclosed & fan-cooled
- Enclosures class: IP55
- Insulation class: F
Ambient Temperature
Max. Ambient temperature: +40 degC. Ambient temperature above 40 degC, or installation at altitude of more than 1000 m above sea level, require the use of an oversize motor. Because of low air density and poor cooling effects, the motor output power P2 will be decreased.
Accessories On Request
- AISI304 Threaded flange
- Flange gasket
Model Code: XZS50-32-160-22(380V)
- XZS - LEO Stainless Steel Standard Centrifugal Pump
- 65 - Inlet Diameter (mm)
- 50 - Outlet Diameter (mm)
- 160 - Impeller Nominal Diameter (mm)
- 40 - Rated Power (x100 W)
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Leo XZS50-32-160-22?
The Leo XZS50-32-160-22 has a maximum head of 37 m.
How much water can the Leo XZS50-32-160-22 pump?
The Leo XZS50-32-160-22 pumps up to 20 m³/h (333 l/min).
What power supply does the Leo XZS50-32-160-22 need?
Supply: 400 V three-phase, 50 Hz. Motor power: 2.2 kW (3 HP).
What are the pipe connections of the Leo XZS50-32-160-22?
DN50 flange / DN32 flange.
