Leo LEP100-80-200 Bare Shaft End Suction Centrifugal Pump Only
12275

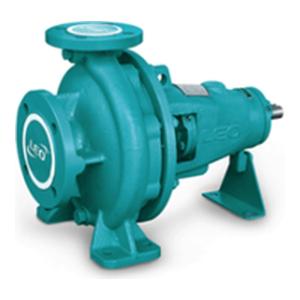

The LEO LEP100-80-200 is a bare-shaft end suction centrifugal pump built to the European standard BS EN733 / DIN 24255. It has a DN100 suction and DN80 discharge flange and a 200 mm nominal impeller, in a horizontal, single-stage, back pull-out volute design. This is the pump only: it is supplied without motor, coupling or base plate, so it can be matched to a 2-pole (2900 rpm) or 4-pole (1450 rpm) motor for the duty point you need.
Back pull-out construction lets the rotating assembly be removed for servicing without disturbing the suction and discharge pipework. Typical uses are water supply, pressure boosting, HVAC heating and cooling circuits, industrial process water and fire-fighting systems.
Specifications
- Model: LEP100-80-200 (bare shaft pump)
- Suction x discharge: DN100 x DN80
- Impeller nominal diameter: 200 mm
- Standard: BS EN733 / DIN 24255 dimensions and performance
- Flanges: ISO 7005.2 / DIN 2501 PN16
- Speed: 1450 or 2900 rpm at 50 Hz (depending on motor)
- Series range: flow 0.5 - 440 l/s, head 2 - 152 m
- Max. liquid temperature: 105 °C; pH 4 - 10
- Max. operating pressure: 10 bar (16 bar on request)
- Materials: cast iron casing and impeller (standard), 2Cr13 shaft; mechanical seal (standard) or gland packing
- Pump weight (bare shaft): approx. 76 kg
Technical data
| Brand | Leo |
| Model | LEP100-80-200 |
| Type | LEP100-80-200 End Suction Centrifugal Pump (bare shaft) - 2900 rpm, max impeller 214 mm |
| Motor required (max. impeller) | 45 kW, 2-pole (2900 rpm) – motor sold separately |
| Max. impeller diameter | 214 mm |
| Inlet / outlet | DN100 flange / DN80 flange |
| Shut-off head | 63.5 m |
| Flow range | 0 – 236 m³/h (0 – 3933 l/min) |
| Curve sheet | Leo 07 END SUCTION CENTRIFUGAL PUMP catalogue, page 26, 45 |
Applications
- Water supply and pressure boosting
- Heating systems for commercial buildings and district heating
- Cooling plants and air-conditioning circuits
- Industrial process water transfer
- Fire-fighting systems
Performance
| Flow Q (m³/h) | 0 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 225 | 236 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Flow Q (l/min) | 0 | 417 | 833 | 1250 | 1667 | 2083 | 2500 | 2917 | 3333 | 3750 | 3933 |
| Head H (m) | 63.5 | 63.2 | 62.8 | 62.1 | 61.3 | 59.7 | 57.8 | 55.1 | 51.4 | 46.6 | 44.3 |
Head at flow read off the performance curve in the Leo 07 END SUCTION CENTRIFUGAL PUMP catalogue (page 26, 45), 50 Hz – approximate. Bare-shaft pump: values for the largest impeller at 2900 rpm; smaller impeller trims give proportionally lower head – see the curve sheet. Download the full curve sheet below. Use the Get a Quote wizard for a duty-point check.
Leo LEP100-80-160 End Suction Centrifugal Pump (bare shaft) – 2900 rpm, max impeller 174 mm – Performance Curves and Technical Data (07-END SUCTION CENTRIFUGAL PUMP catalogue p26, 45)
962 kB | Download
Complete Specifications, Sizing and Price Guide Click Here.
