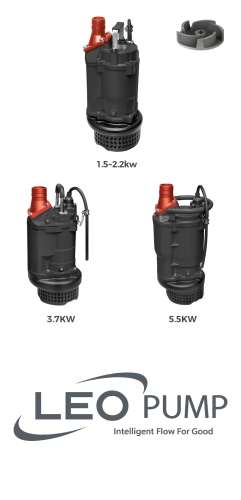

Meudy KBZ22.2 / 2.2KW 400V Submersible Dewatering Pump And Motor

The LEO KBZ22.2 is a robust submersible dewatering pump engineered for demanding applications across civil engineering, mining, quarrying, and sewage treatment facilities. Built to handle challenging slurry and ore-laden water, this 2-inch outlet pump delivers impressive performance with flow rates up to 156 m3/h and head capacity reaching 57 meters, making it an ideal solution for general pumping purposes in industrial and construction environments.

Constructed with copper windings and sealed in an IP68-rated enclosure, the KBZ22.2 submersible pump is built to withstand the harshest submersion conditions down to 25 meters depth with its durable design and Class B insulation. Available in power ratings from 1.5 kW through 15 kW, this dewatering pump combines reliable submersible construction with the flexibility to match your specific site requirements, whether managing mine dewatering operations, quarry site runoff, or general water removal tasks.

Application

• Civil engineering
• Mines, quarries, Coal ore & slurries
• Sewage treatment plants
• General pumping purposes

Pump

• Max. liquid temperature: +40
• Flow: up to 156 m3/h
• Head: up to 57 m
• Power: 1.5 kW (2 HP) to 15 kW (20 HP)
• Max. Immersion depth: 25 m
• Cable Length: 8 m

Motor

• Copper winding
• Insulation class: B
• Enclosures class: IP68

Identification Codes

• KBZ - Submersible Dewatering Pump
• 2 - Outlet Diameter ( )
• 1.5 - Power (kW)
