Wilo Multivert MVI 7003 (3~400V, EPDM, PN 25) / 18.5kW Vertical Multistage Pump

R 127,254.68 incl. VATAdd to Basket

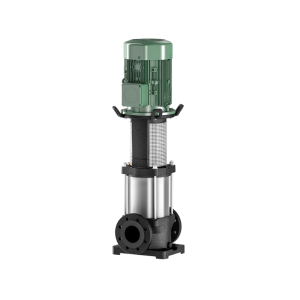

Wilo Multivert MVI 7003 (3~400V, EPDM, PN 25) / 18.5kW Vertical Multistage Pump image 1

The Wilo Multivert MVI 7003 (3~400V, EPDM, PN 25) is a vertical multistage high-pressure centrifugal pump from the Wilo Multivert MVI range with a 18.5 kW motor rating. Non-self-priming multistage pump.

At a glance

Power: 18.5 kWSupply: ±10 %Max. head: 80 mMax. flow: 100 m³/hConnections: 10 barBest for: Water distribution and pressure boosting, Fire-fighting systems, Boiler feed

Specifications

BrandWilo
Item code4071189
ModelMultivert MVI 7003 (3~400V, EPDM, PN 25)
SeriesWilo Multivert MVI
Typevertical multistage high-pressure centrifugal pump
Rated power P218.5 kW
Pressure portDN 100
Mains connection3~400 V, 50 Hz
Minimum efficiency index (MEI)0.4
Maximum inlet pressure p inl10 bar
Maximum operating pressure PN25 bar
Discharge portDN 100
Min. fluid temperature Tmin-15 °C
Max. fluid temperature Tmax120 °C
Min. ambient temperature Tmin-15 °C
Max. ambient temperature Tmax50 °C
Voltage tolerance±10 %
Rated power P218.5 kW
Motor efficiency classIE3
Rated current IN32.8 A
Rated speed n2900 1/min
Power factor cos φ1000.89
Motor efficiency 50% ηM 50%91.6 %
Motor efficiency 75% ηM 75%92.5 %
Motor efficiency 100% ηM 100%92.4 %
Insulation classF
Protection classIP55
Pump housingGrey cast iron
ImpellerStainless steel
ShaftStainless steel
Shaft sealU3BE3GG
Gasket materialEPDM
Pipe connection, suction side DNsDN 100
Pipe connection, discharge side DNdDN 100
Dimensions (W × L × H)80 × 160 × 65 cm
Weight233 kg

Performance Table

Flow (m³/h)020406080100
Head (m)807672.166.65639.5
Power P2 (kW)10.610.912.413.814.814.3

Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.

Performance Curves and Technical Data (PDF)

Download the curve sheet with the performance curves, dimensions and technical data for the Wilo Multivert MVI 7003 (3~400V, EPDM, PN 25):



Wilo Data Sheet Multivert MVI 7003-1 400V EPDM PN25

1 MB  |  Download

Applications

  • Water distribution and pressure boosting
  • Fire-fighting systems
  • Boiler feed
  • Industrial circulation systems
  • Process engineering
  • Cooling water circulation systems
  • Washing and sprinkling systems

Features

  • Corrosion-resistant impellers, diffusors and stage housings
  • Drinking water approval for all components that come in contact with the fluid (EPDM version)

Dimensions & Weight

DimensionValue
Length L380 mm
Width W350 mm
Height H1318 mm
Net weight (approx.)207 kg
Gross weight (approx.)233 kg
Length with packaging1600 mm
Width with packaging800 mm
Height with packaging650 mm

Need help choosing or want a price?

Our pump team will check the right size for your flow and head and give you a quote.

WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za

Frequently Asked Questions

What is the maximum head of the Wilo Multivert MVI 7003 (3~400V, EPDM, PN 25)?

The Wilo Multivert MVI 7003 (3~400V, EPDM, PN 25) has a maximum head of 80 m.

How much water can the Wilo Multivert MVI 7003 (3~400V, EPDM, PN 25) pump?

The Wilo Multivert MVI 7003 (3~400V, EPDM, PN 25) pumps up to 100 m³/h.

What power supply does the Wilo Multivert MVI 7003 (3~400V, EPDM, PN 25) need?

Supply: ±10 %. Motor power: 18.5 kW.

What are the pipe connections of the Wilo Multivert MVI 7003 (3~400V, EPDM, PN 25)?

10 bar.
