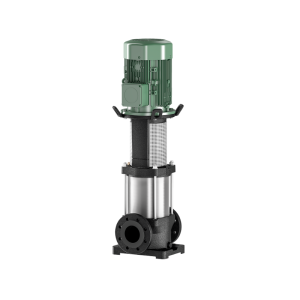

Wilo Multivert MVI 9503/1 (3~400V, EPDM, PN 16) / 22kW Vertical Multistage Pump
12707
The Wilo Multivert MVI 9503/1 (3~400V, EPDM, PN 16) is a vertical multistage high-pressure centrifugal pump from the Wilo Multivert MVI range with a 22 kW motor rating. Non-self-priming multistage pump.
At a glance
Power: 22 kWSupply: ±10 %Max. head: 86.8 mMax. flow: 140 m³/hConnections: 10 barBest for: Water distribution and pressure boosting, Fire-fighting systems, Boiler feedSpecifications
| Brand | Wilo |
| Item code | 4082540 |
| Model | Multivert MVI 9503/1 (3~400V, EPDM, PN 16) |
| Series | Wilo Multivert MVI |
| Type | vertical multistage high-pressure centrifugal pump |
| Rated power P2 | 22 kW |
| Pressure port | DN 100 |
| Mains connection | 3~400 V, 50 Hz |
| Minimum efficiency index (MEI) | 0.4 |
| Maximum inlet pressure p inl | 10 bar |
| Maximum operating pressure PN | 16 bar |
| Discharge port | DN 100 |
| Min. fluid temperature Tmin | -15 °C |
| Max. fluid temperature Tmax | 120 °C |
| Min. ambient temperature Tmin | -15 °C |
| Max. ambient temperature Tmax | 50 °C |
| Voltage tolerance | ±10 % |
| Rated power P2 | 22 kW |
| Motor efficiency class | IE3 |
| Rated current IN | 39.1 A |
| Rated speed n | 2940 1/min |
| Power factor cos φ100 | 0.87 |
| Motor efficiency 50% ηM 50% | 92.7 % |
| Motor efficiency 75% ηM 75% | 92.7 % |
| Motor efficiency 100% ηM 100% | 92.7 % |
| Insulation class | F |
| Protection class | IP55 |
| Pump housing | Grey cast iron |
| Impeller | Stainless steel |
| Shaft | Stainless steel |
| Shaft seal | U3BE3GG |
| Gasket material | EPDM |
| Pipe connection, suction side DNs | DN 100 |
| Pipe connection, discharge side DNd | DN 100 |
| Dimensions (W × L × H) | 80 × 160 × 65 cm |
| Weight | 250 kg |
Performance Table
| Flow (m³/h) | 0 | 30 | 60 | 90 | 120 | 140 |
|---|---|---|---|---|---|---|
| Head (m) | 86.8 | 80.5 | 74.7 | 68.4 | 54.9 | 40.4 |
| Power P2 (kW) | 13.7 | 15.5 | 18.7 | 22.2 | 24.2 | 23.7 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Wilo Multivert MVI 9503/1 (3~400V, EPDM, PN 16):
Wilo Data Sheet MVI 9503-1 400V EPDM PN16
1013 kB | Download
Applications
- Water distribution and pressure boosting
- Fire-fighting systems
- Boiler feed
- Industrial circulation systems
- Process engineering
- Cooling water circulation systems
- Washing and sprinkling systems
Features
- Corrosion-resistant impellers, diffusors and stage housings
- Drinking water approval for all components that come in contact with the fluid (EPDM version)
Dimensions & Weight
| Dimension | Value |
|---|---|
| Length L | 445 mm |
| Width W | 310 mm |
| Height H | 1347 mm |
| Net weight (approx.) | 241 kg |
| Gross weight (approx.) | 250 kg |
| Length with packaging | 1600 mm |
| Width with packaging | 800 mm |
| Height with packaging | 650 mm |
