Wilo QFN-1-18 / 0.55kW 32mm Submersible Borehole Pump End (for 4” motor)

R 4,896.84 incl. VATAdd to Basket

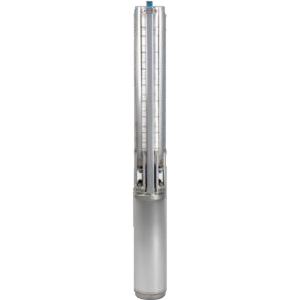

Wilo QFN-1-18 / 0.55kW 32mm Submersible Borehole Pump End (for 4” motor) image 1

The Wilo QFN-1-18 is a 4” multistage submersible borehole pump end from the Wilo QFN 4” range with a 0.55 kW motor rating. Multistage 4" submersible pump in tie strap version for vertical or horizontal installation. Pump end only – motor sold separately.

At a glance

Power: 0.55 kWMax. head: 101 mMax. flow: 1.4 m³/h (23 l/min)Connections: 32mm

Specifications

BrandWilo
Item code2741502A
ModelQFN-1-18
SeriesWilo QFN 4”
Type4” multistage submersible borehole pump end
Motor diameter (in)4
Rated power P20.55 kW
Connection32mm
Stages18
Shut-off head101 m
Flow range0 – 1 m³/h (best efficiency ≈ 1 m³/h)
Max. shaft power0.5 kW (recommended motor 0.6 kW)

Performance Table

Flow Q (m³/h)00.511.4
Flow Q (l/min)081723
Head H (m)10192.165.835.3
Shaft power P2 (kW)–0.450.490.5
Efficiency (%)0283727

Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.

Performance Curves and Technical Data (PDF)

Download the curve sheet with the performance curves, dimensions and technical data for the Wilo QFN-1-18:



Wilo QFN1 Performance Curve & Dimensions (50 Hz)

292 kB  |  Download



Wilo QFN 1 Series Technical Data Sheet

88 kB  |  Download

Applications

  • For water and drinking water supply from boreholes and rainwater storage
  • Process water supply
  • For municipal water supply, sprinkling and irrigation
  • Pressure boosting
  • Lowering the water level
  • For pumping water in industrial applications
  • For pumping water without long-fibre and abrasive constituents

Features

  • Long service life thanks to corrosion-resistant stainless steel, optionally in V4A quality
  • ACS certified for drinking water applications
  • A high degree of flexibility thanks to versions in the 4, 6, 8 and 10-inch area p
  • High range of performance from 1 to 250 m³/h re
  • Installation and operating instructions

Need help choosing or want a price?

Our pump team will check the right size for your flow and head and give you a quote.

WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za

Frequently Asked Questions

What is the maximum head of the Wilo QFN-1-18?

The Wilo QFN-1-18 has a maximum head of 101 m.

How much water can the Wilo QFN-1-18 pump?

The Wilo QFN-1-18 pumps up to 1.4 m³/h (23 l/min).

What is the motor power of the Wilo QFN-1-18?

The motor power is 0.55 kW.

What are the pipe connections of the Wilo QFN-1-18?

32mm.
