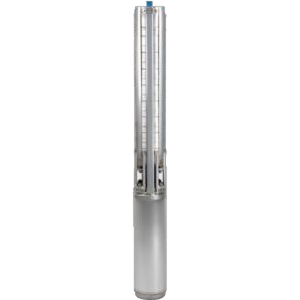

Wilo QFN-2-23 / 1.1kW 32mm Submersible Borehole Pump End (for 4” motor)
12846
The Wilo QFN-2-23 is a 4” multistage submersible borehole pump end from the Wilo QFN 4” range with a 1.1 kW motor rating. Multistage 4" submersible pump in tie strap version for vertical or horizontal installation. Pump end only – motor sold separately.
At a glance
Power: 1.1 kWMax. head: 135 mMax. flow: 2.5 m³/h (42 l/min)Connections: 32mmSpecifications
| Brand | Wilo |
| Item code | 2741524A |
| Model | QFN-2-23 |
| Series | Wilo QFN 4” |
| Type | 4” multistage submersible borehole pump end |
| Motor diameter (in) | 4 |
| Rated power P2 | 1.1 kW |
| Connection | 32mm |
| Stages | 23 |
| Shut-off head | 135 m |
| Flow range | 0 – 3 m³/h (best efficiency ≈ 2 m³/h) |
| Max. shaft power | 1 kW (recommended motor 1.1 kW) |
Performance Table
| Flow Q (m³/h) | 0 | 0.5 | 1 | 1.5 | 2 | 2.5 |
|---|---|---|---|---|---|---|
| Flow Q (l/min) | 0 | 8 | 17 | 25 | 33 | 42 |
| Head H (m) | 135 | 130 | 122 | 109 | 90 | 63.3 |
| Shaft power P2 (kW) | – | 0.63 | 0.77 | 0.9 | 0.99 | 1.04 |
| Efficiency (%) | 0 | 28 | 43 | 49 | 49 | 41 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Wilo QFN-2-23:
Wilo QFN2 Performance Curve & Dimensions (50 Hz)
293 kB | Download
Wilo QFN 2 Series Technical Data Sheet
96 kB | Download
Applications
- For water and drinking water supply from boreholes and rainwater storage
- Process water supply
- For municipal water supply, sprinkling and irrigation
- Pressure boosting
- Lowering the water level
- For pumping water in industrial applications
- For pumping water without long-fibre and abrasive constituents
Features
- Long service life thanks to corrosion-resistant stainless steel, optionally in V4A quality
- ACS certified for drinking water applications
- A high degree of flexibility thanks to versions in the 4, 6, 8 and 10-inch area p
- High range of performance from 1 to 250 m³/h re
- Installation and operating instructions
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Wilo QFN-2-23?
The Wilo QFN-2-23 has a maximum head of 135 m.
How much water can the Wilo QFN-2-23 pump?
The Wilo QFN-2-23 pumps up to 2.5 m³/h (42 l/min).
What is the motor power of the Wilo QFN-2-23?
The motor power is 1.1 kW.
What are the pipe connections of the Wilo QFN-2-23?
32mm.
