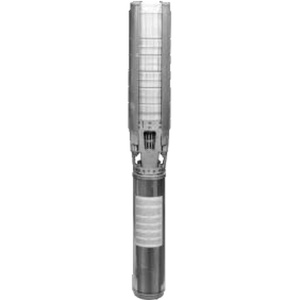

Wilo QFN-50-04 / 4kW 80mm Submersible Borehole Pump End (for 5” motor)
12914
The Wilo QFN-50-04 is a 6” multistage submersible borehole pump end from the Wilo QFN 6” range with a 4 kW motor rating. Multistage 6" submersible pump in tie strap version for vertical or horizontal installation. Pump end only – motor sold separately.
Applications
- For water and drinking water supply from boreholes and rainwater storage tanks
- Process water supply
- For municipal water supply, sprinkling and irrigation
- Pressure boosting
- Lowering the water level
- For pumping water in industrial applications
- For pumping water without long-fibre and abrasive constituents
Features
- Long service life thanks to corrosion-resistant stainless steel, optionally in V4A quality
- ACS certified for domestic hot water applications
- A high degree of flexibility thanks to versions in the 4, 6, 8 and 10-inch area
- High range of performance from 1 to 250 m³/h
- Star-delta starting
- Rewindable motor
- Rewindable motor with drinking water filling
- Configured units for special versions
Specifications
| Parameter | Value |
|---|---|
| Brand | Wilo |
| Item code | 2741643A |
| Model | QFN-50-04 |
| Series | Wilo QFN 6” |
| Type | 6” multistage submersible borehole pump end |
| Motor diameter (in) | 5 |
| Rated power P2 (kW) | 4 |
| Connection | 80mm |
Data from the Wilo South Africa price list. Specifications may change without notice.
