Vansan VSP 7095-07 – 37KW Submersible Pump
13305

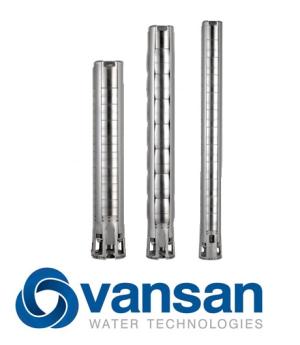

Vansan VSP 7095-07 – 37kW Stainless Steel 7" Submersible Borehole Pump
Vansan VSP stainless steel 7" submersible borehole pumps (172 mm) for high-flow irrigation and bulk water supply.
At a glance
Power: 37 kWMax. head: 138 mMax. flow: 108 m³/hConnections: 125mmSpecifications
| Brand | Vansan |
| Item code | VSP 7095-07 |
| Model | VSP 7095-07 |
| Nominal flow | 95 m³/h |
| Stages | 7 |
| Motor power | 37 kW |
| Horsepower | 50 HP |
| Outlet | 125mm |
| Packed size (L x W x H) | 110 x 21 x 21 cm |
| Shipping weight | 47.4 kg (approx.) |
| Range power | 4 - 110 kW |
| Nominal diameter | 7" (172 mm) |
| Range flow | 20 - 125 m³/h |
| Range max head | 550 m |
| Outlet | 5" (127 mm) |
| Impeller / diffuser | Stainless steel |
| Dimensions (W × L × H) | 21 × 110 × 21 cm |
Performance Table
| Flow (m³/h) | 16.0 | 30.0 | 44.0 | 58.0 | 65.0 | 72.0 | 80.0 | 88.0 | 96.0 | 104.0 | 108.0 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Head (m) | 138 | 133 | 124 | 115 | 109 | 103 | 95 | 84 | 72 | 57 | 48 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Vansan VSP 7095-07:
Vansan VSP SS 07095 Technical Data & Hydraulic Performance Curve
561 kB | Download
Vansan Submersible Water Filled Motor Technical Data
9 MB | Download
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Vansan VSP 7095-07?
The Vansan VSP 7095-07 has a maximum head of 138 m.
How much water can the Vansan VSP 7095-07 pump?
The Vansan VSP 7095-07 pumps up to 108 m³/h.
What is the motor power of the Vansan VSP 7095-07?
The motor power is 37 kW.
What are the pipe connections of the Vansan VSP 7095-07?
125mm.
