Multiflo HMW 40/2 - CB Build
1347

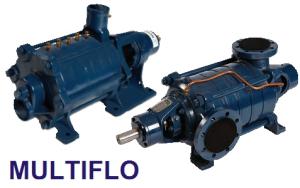

Multiflo HMW Multi-Stage Centrifugal Pumps
The HMW is custom-built to eight stages and ranges in size from40mm and 50mm to 65mm and 80mm. HMW pumps can be used for water supply and distribution, irrigation, fire fighting, heating and air-conditioning, as well as general industrial service.
At a glance
Power: 0.61 0.65 0.7 0.75 0.82 0.91 1.04Max. head: 87.9 mMax. flow: 25 m³/hSpecifications
| Model | HMW 40/2 – CB build (bareshaft, coupled to customer motor) |
| Type | Horizontal multistage ring-section centrifugal pump |
| Stages | 2 |
| Branches | 40 (discharge) x 50 mm (suction) |
| Impeller diameters | Ø170 / 165 / 160 mm (full diameter and two trims per stage) |
| Max. flow | 25 m³/h at 2 900 rpm / 12 m³/h at 1 450 rpm |
| Head range (full impellers) | 53.3 – 87.9 m at 2 900 rpm; 14.2 – 21.9 m at 1 450 rpm |
| Max. power absorbed | 8.1 kW at 2 900 rpm; 1.04 kW at 1 450 rpm (motor to be sized above this) |
| Flow (m³/h) | 0 2 4 6 8 10 12 |
| Head (m) | 21.9 21.9 21.4 20.4 18.9 16.8 14.2 |
| Power absorbed (kW) | 0.61 0.65 0.7 0.75 0.82 0.91 1.04 |
| NPSH required (m) | 1.3 1.3 1.3 1.5 1.8 2.3 2.9 |
| Item code | 13197 |
Performance Table
| Flow (m³/h) | 0 | 5 | 10 | 15 | 20 | 25 |
|---|---|---|---|---|---|---|
| Head (m) | 87.9 | 87.6 | 84 | 77.1 | 66.8 | 53.3 |
| Power absorbed (kW) | 4.44 | 4.92 | 5.39 | 5.98 | 6.83 | 8.07 |
| NPSH required (m) | 1 | 1 | 1.1 | 1.3 | 1.7 | 2.3 |
2 900 rpm (full Ø170 mm impellers)
1 450 rpm (full Ø170 mm impellers)
Head and absorbed power are the Multiflo HMW40 per-stage curves (full Ø170 mm impellers) multiplied by 2 stages; NPSH is for the pump. Smaller impeller trims (Ø170 / 165 / 160 mm) and intermediate speeds give lower duties – ask us for a selection or use the Get a Quote wizard. Download the HMW40 curve sheets at 1 450 and 2 900 rpm below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Multiflo HMW 40/2 - CB Build:
Multiflo HMW 40 Performance Curves 1450 rpm
31 kB | Download
Multiflo HMW 40 Performance Curves 2900 rpm
32 kB | Download
Features
- Ring sections sealed with “O” ring clamped by external tie bolts.
- Operating temperature - 10⁰ to 110⁰ C
- Seal flushing options
- Spark-proof and flame-proof motor options
- Option of bronze impeller
- Flanged suction and delivery branches
- Pump feet intergrally cast on suction and discharge castings
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Multiflo HMW 40/2 - CB Build?
The Multiflo HMW 40/2 - CB Build has a maximum head of 87.9 m.
How much water can the Multiflo HMW 40/2 - CB Build pump?
The Multiflo HMW 40/2 - CB Build pumps up to 25 m³/h.
What is the motor power of the Multiflo HMW 40/2 - CB Build?
The motor power is 0.61 0.65 0.7 0.75 0.82 0.91 1.04.
