Vansan V2200DF - 2.2KW 230V Submersible Dewatering Pump With Cutter For Dirty Water

Price Unavailable - Please contact us for a quote.

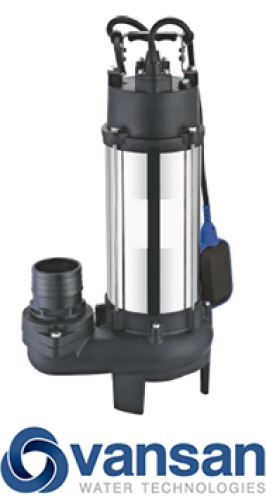

Vansan V2200DF - 2.2KW 230V Submersible Dewatering Pump With Cutter For Dirty Water image 1

Vansan V2200DF - 2.2KW 230V Submersible Dewatering Pump With Cutter For Dirty Water

Performance

  • Max. immersion depth: 5 m
  • Max. liquid temperature: 40 C
  • Liquid pH value: 4-10
  • Max. liquids density: 1.2 x 10kg/m

Features

  • Copper winding
  • Built-in thermal protector
  • Stainless steel welded shaft
  • Insulation Class: B
  • Protection Class: IPX8

Applications

  • Waste water drainage in factories, construction sites and commercial facilities
  • Drainage system in municipal sewage treatment plants
  • Drainage stations in residential quarters
  • Municipal projects
  • Methane pools and field irrigation in countryside



Vansan V2200DF Technical Data Hydraulic Performance Curve

1 MB  |  Download

Performance table

Flow Q (m³/h)031.2 (max)
Head H (m)10 (max)0

Maximum flow and maximum head, 2.2 kW, 50 Hz. Source: Vansan drainage pump datasheet.

Complete Specifications, Sizing and Price Guide Click Here.
