Multiflo HMW 65/6 - CB Build

Price Unavailable - Please contact us for a quote.

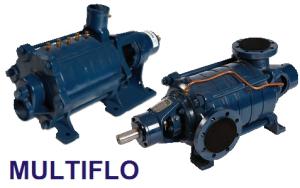

Multiflo HMW 65/6 - CB Build image 1

Multiflo HMW Multi-Stage Centrifugal Pumps

The HMW is custom-built to eight stages and ranges in size from40mm and 50mm to 65mm and 80mm.  HMW pumps can be used for water supply and distribution, irrigation, fire fighting, heating and air-conditioning, as well as general industrial service.

At a glance

Power: 5.62 6.27 6.98 7.72 8.46 9.18 9.87 10.5 11 11.5 11.8 11.9Max. head: 305.9 mMax. flow: 100 m³/h

Specifications

ModelHMW 65/6 – CB build (bareshaft, coupled to customer motor)
TypeHorizontal multistage ring-section centrifugal pump
Stages6
Branches65 x 80 mm
Impeller diametersØ192 / 180 / 170 mm (full diameter and two trims per stage)
Max. flow100 m³/h at 2 900 rpm / 53.1 m³/h at 1 450 rpm
Head range (full impellers)186.9 – 305.9 m at 2 900 rpm; 38.6 – 76.7 m at 1 450 rpm
Max. power absorbed87.9 kW at 2 900 rpm; 11.88 kW at 1 450 rpm (motor to be sized above this)
Flow (m³/h)0 5 10 15 20 25 30 35 40 45 50 53.1
Head (m)76.7 76.1 75.8 75.5 75 74 72 68.9 63.9 56.6 46.6 38.6
Power absorbed (kW)5.62 6.27 6.98 7.72 8.46 9.18 9.87 10.5 11 11.5 11.8 11.9
NPSH required (m)1.7 1.7 1.7 1.7 1.7 1.8 1.9 2 2.1 2.3 2.6 2.8
Item code13398

Performance Table

Flow (m³/h)0102030405060708090100
Head (m)305.9304303.1302300295.9288.3275.4255.6226.8186.9
Power absorbed (kW)5053.256.960.965.169.473.677.881.685.187.9
NPSH required (m)2.22.22.22.22.22.52.93.444.65.4

2 900 rpm (full Ø192 mm impellers)

1 450 rpm (full Ø192 mm impellers)

Head and absorbed power are the Multiflo HMW65 per-stage curves (full Ø192 mm impellers) multiplied by 6 stages; NPSH is for the pump. Smaller impeller trims (Ø192 / 180 / 170 mm) and intermediate speeds give lower duties – ask us for a selection or use the Get a Quote wizard. Download the HMW65 curve sheets at 1 450 and 2 900 rpm below.

Performance Curves and Technical Data (PDF)

Download the curve sheet with the performance curves, dimensions and technical data for the Multiflo HMW 65/6 - CB Build:



Multiflo HMW 65 Performance Curves 1450 rpm

32 kB  |  Download



Multiflo HMW 65 Performance Curves 2900 rpm

32 kB  |  Download

Features

  • Ring sections sealed with “O” ring clamped by external tie bolts.
  • Operating temperature - 10⁰ to 110⁰ C
  • Seal flushing options
  • Spark-proof and flame-proof motor options
  • Option of bronze impeller
  • Flanged suction and delivery branches
  • Pump feet intergrally cast on suction and discharge castings

Need help choosing or want a price?

Our pump team will check the right size for your flow and head and give you a quote.

WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za

Frequently Asked Questions

What is the maximum head of the Multiflo HMW 65/6 - CB Build?

The Multiflo HMW 65/6 - CB Build has a maximum head of 305.9 m.

How much water can the Multiflo HMW 65/6 - CB Build pump?

The Multiflo HMW 65/6 - CB Build pumps up to 100 m³/h.

What is the motor power of the Multiflo HMW 65/6 - CB Build?

The motor power is 5.62 6.27 6.98 7.72 8.46 9.18 9.87 10.5 11 11.5 11.8 11.9.
