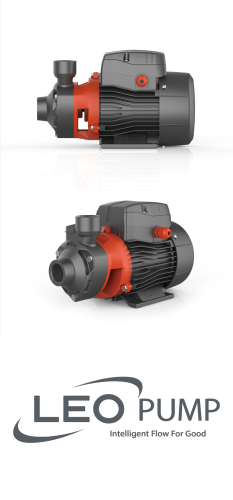

Leo Press-APM60 - 0.6KW 230V Pump With Controller 230V
13955
The LEO Press-APm60 is a ready-to-install pressure pump: the LEO APm60 0.6 kW 230V pump supplied with an automatic pressure controller fitted. The controller starts the pump when a tap opens and stops it when flow stops, keeps pressure steady and protects the pump against running dry - no pressure tank or separate pressure switch needed.
Pump details:
The LEO APm60 is a reliable peripheral pump designed for domestic and light commercial applications requiring efficient water transfer and circulation. Ideal for small residential water supply systems, automatic garden sprinkler installations, and compact air conditioning units, this single-phase pump delivers consistent performance for clean water and liquids with similar physical and chemical properties up to 60 degC.
Built with durability in mind, the APm60 features a corrosion-resistant cast iron pump body with specialized anti-rust treatment, complemented by a brass impeller and AISI 304 stainless steel shaft for long-term reliability in varied conditions. Its energy-efficient copper-wound motor incorporates low-noise, long-life bearings and an integrated thermal protector, while the IPX4 enclosure rating and F-class insulation ensure safe operation in humid environments with an 8-meter maximum suction capability.
Application
- Can be used to transfer clean water or other liquids similar to water in physical and chemical properties
- Suitable for small living water supply, automatic water sprinkler system, small air conditioner system or supporting equipment etc.
Pump
- Special anti-rust treatment for cast iron pump body and support
- Brass impeller
- AISI 304 shaft
- Max. liquid temperature: +60 degC
- Max. suction: 8 m
Motor
- Low noise&Long life bearing
- Motor with copper winding
- Built-in thermal protector for single phase motor
- Insulation class: F
- Enclosures class: IPX4
- Max. ambient temperature: +50 degC
- IE 2 motor (AP110, AP150)
Identification Codes
- A - LEO Product Style
- P - Peripheral Pump
- m - Single Phase Motor (Omitted for three-phase motor)
- 37 - Power(x10 W)
