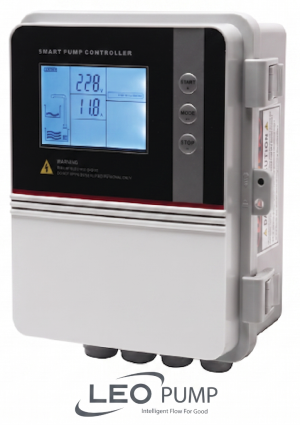

Omega 0.75KW 230V Intelligent Control Box
14000
The Omega M921 PCS11 is a single-phase single-pump control panel rated at 0.75 kW (1 HP) for AC220V–250V applications. Simple, reliable and easy to use, the PCS11 can control and protect deep well pumps, sewage pumps, self-priming pumps, centrifugal pumps, and pipeline pumps. The IP67-rated weatherproof enclosure is wall-mounted and features an LCD display for real-time pump status and fault diagnostics.
The PCS11 Plus variant is specially designed to accommodate both a start capacitor and a run capacitor, making it ideal for deep well pump applications that require both. An optional PT100 temperature sensor expansion module is available for temperature-controlled operation.
At a glance
Power: 0.75 kWSupply: 230 VSpecifications
| Brand | Omega |
| Dimensions (W × L × H) | 19.3 × 22.8 × 11.6 cm |
| Weight | 0.95 kg |
| Motor power | 0.75 kW |
| Voltage | 230 V |
| Item code | INTELLIGENT-CONTROLBOX-M921-0.75KW |
Application Modes
- Water transfer from low tank to upper tank by liquid probe or float switch
- Booster pump control by pressure switch and pressure tank
- Sewage lifting by liquid probe or float switch
- Pure cycle timer control (no logic control characteristic)
- Temperature control by PT100 sensor (expansion module required)
Protection Features
- Dry run protection with sensor-free operation
- Pump stalled protection
- Overload protection
- Under-voltage protection
- Over-voltage protection
Other Features
- Push button calibration
- Pure cycle timer control
- Pump stop timer under manual control state
- Last 5 fault records stored and displayable
- Accumulative pump running time display
- Dynamic LCD displays real-time pump running information
- Memory function on power-off and power recovery
- Overflow alarm for sewage lifting/drainage applications
- Reserved capacitor installation space (start capacitor & run capacitor)
- Optional PT100 temperature sensor expansion module
- Available in black or white housing
- All electronic components with good stability and reliable quality
Special Features on Request
- Customisation input voltage available — contact manufacturer
- PT100 temperature sensor expansion module (optional)
- Alternative housing colour (black/white)
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What power supply does the Omega 0.75KW 230V Intelligent Control Box need?
Supply: 230 V. Motor power: 0.75 kW.
What is the part / item code of the Omega 0.75KW 230V Intelligent Control Box?
The item code is INTELLIGENT-CONTROLBOX-M921-0.75KW.
