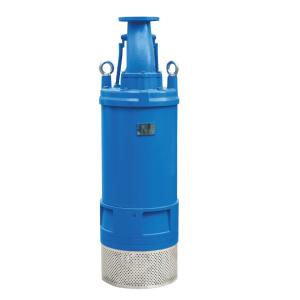

Meudy SH637 / 37KW 525V Submersible Dewatering Pump And Motor
14020
The Meudy SH637 is a 37 kW high-head submersible drainage pump with a 150 mm top outlet, built for deep-well pre-dewatering, mines, quarries, civil works and sewage plants. It delivers 120 m³/h at 65 m head, with a maximum head of 83 m and a maximum flow of 220 m³/h.
The hard cast iron pump and motor, high chrome alloy impeller and pressure-resistant mechanical seals allow deep submersion; the hydraulic part sits below the motor, so the pumped water cools the motor even when only partly immersed. Solids passage 6 mm.
Application
- Deep-well pre-dewatering or high-head dewatering
- Civil engineering and construction works
- Mines, quarries, coal ore & slurries
- Sewage treatment plants
- General pumping purposes
Specifications
| Brand | Meudy |
|---|---|
| Model | SH637 |
| Pump type | High-head submersible drainage pump |
| Motor power | 37 kW (49.5 HP) |
| Power supply | Three-phase 525 V, 50 Hz |
| Rated current (400 V) | 66 A |
| Speed | 2850 rpm |
| Starting | Star-delta |
| Outlet | 150 mm |
| Rated duty | 120 m³/h @ 65 m |
| Max. flow | 220 m³/h |
| Max. head | 83 m |
| Solids passage | 6 mm |
| Max. liquid temperature | 40 °C |
| Motor protection | IP68 |
Performance
| Flow Q (m³/h) | 0 | 50 | 100 | 120 | 150 | 200 | 220 |
|---|---|---|---|---|---|---|---|
| Head H (m) | 83 | 78 | 70 | 65 | 56 | 30 | 12 |
50 Hz performance from the manufacturer curve.
Meudy SH High Head Drainage Pumps Curves
32 kB | Download
