John Tech JT 4-02-17 / 1.1kW 230V Submersible Pump with 80m Cable
14193
John Tech 4" Pump Pack 4 (JT4-03-17) 1.1kW with 80m Cable
John Tech borehole pump pack - a ready-to-install kit for 230V single phase domestic boreholes.
At a glance
Power: 1.1 kWSupply: 230 VMax. head: 129 mMax. flow: 4.8 m³/h (80 l/min)Connections: 40mmBest for: Wells, farm irrigation, river pumping and water supplySpecifications
| Brand | John Tech |
| Item code | JOHN TECH PACK 4 |
| Model | JT 4-02-17 |
| Motor power | 1.1 kW |
| Horsepower | 1.5 HP |
| Outlet | 40mm |
| Cable length | 80m |
| Pump model | JT4-03-17 |
| Packed size (L x W x H) | 110 x 45 x 30 cm |
| Shipping weight | 29 kg (approx.) |
| Motor | 2-pole oil-filled, 220V 50 Hz, class B, IPX8 |
| Max submersion | 100 m |
| Liquid temperature | up to +40°C |
| Min borehole diameter | 3.5" |
| Pump body / shaft | Stainless steel |
| Impeller | POM |
| Mechanical seal | Graphite / silicon carbide |
| Dimensions (W × L × H) | 45 × 110 × 30 cm |
| Voltage | 230 V |
Performance Table
| Flow Q (m³/h) | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.2 | 4.8 |
|---|---|---|---|---|---|---|---|---|---|
| Flow Q (l/min) | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 |
| Head H (m) | 129 | 127 | 124 | 119 | 109 | 95 | 77 | 56 | 32 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the John Tech JT 4-02-17:
John Tech 4” Submersible Water Packs – Performance Curves and Technical Data
12 kB | Download
Applications
- Wells, farm irrigation, river pumping and water supply
Features
- Sand content must be less than 150 g/m³

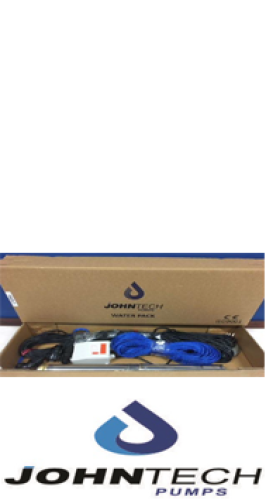

- Includes pump, oil-filled motor, control box, cable, base plate, rope and compression fittings
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the John Tech JT 4-02-17?
The John Tech JT 4-02-17 has a maximum head of 129 m.
How much water can the John Tech JT 4-02-17 pump?
The John Tech JT 4-02-17 pumps up to 4.8 m³/h (80 l/min).
What power supply does the John Tech JT 4-02-17 need?
Supply: 230 V. Motor power: 1.1 kW.
What are the pipe connections of the John Tech JT 4-02-17?
40mm.
