Vega 3SDM2/11 – 0.25KW V2 (220V) Submersible Borehole Pump Kit » Buy online now for only R 3,711.43 incl. VAT

R 3,711.43 incl. VATAdd to Basket

Average Delivery Time:

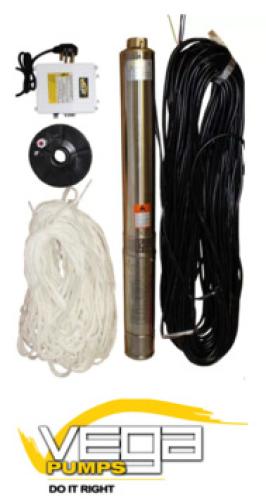

Vega 3SDM2/11 – 0.25KW V2 (220V)  Submersible Borehole Pump Kit image 1

Description

The 3” Borehole range consists of nine models from a 0.18kW – 0.75kW Single phase 220V, 50Hz. Version 2 consists of a pump, motor, control box, cable, joint, rope, and a baseplate.

Application

  • This borehole pump’s key feature is its high pressure and delivery ratio.
  • The reduced stages ensure extended pump life and ease of operation.
  • These pumps are for: domestic, agricultural, mining and industrial use.

Specification

  • Replaceable Pump and Motor.
  • Single-Phase: 220 – 240V/50Hz
  • Equipped with start control box or digital auto-control box.
  • Curve tolerance according to ISO 9906

Construction characteristics

  • Pump external casing: AISI 304 SS
  • Delivery casing: Cast-Cu ASTM C85500
  • Suction lantern: Cast-Cu ASTM C85500
  • Diffuser: Plastic.PC
  • Impeller: Plastic.POM
  • Pump Shaft & Shaft coupling: AISI 304 SS
  • Wear ring: AISI 304 SS
