Vega 20Y Intelligent Pump Controller 0.55kW (220V)

R 1,671.42 incl. VATAdd to Basket
Vega 20Y Intelligent Pump Controller 0.55kW (220V) image 1

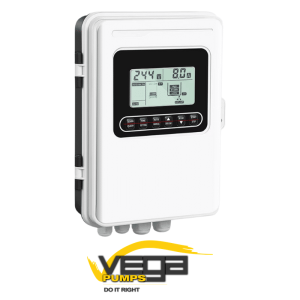

The Vega 20Y intelligent water pump controller is a single-phase LCD controller with built-in start capacitor (25 µF) for 0.55 kW deep-well submersible pumps. Non-contact current sensing detects dry running without probes, so the pump shuts down automatically when the borehole runs dry and restarts on a timer.

Protection

  • Dry-run protection with automatic restart timer
  • Overload and no-load protection
  • Over- and under-voltage protection
  • Water shortage alarm
  • Timer on/off control and LCD display

Specifications

ParameterValue
BrandVega
Item code10070030
Type20Y single-phase intelligent pump controller
Motor power0.55 kW
VoltageAC 220 V ±10%, 50/60 Hz
Start capacitor25 µF built in
Size275 x 205 x 75 mm
