Vega Combo Kit QB60 P/Vane 0.37kW (220V) End-Suction Peripheral Vane QB Range (C/W Flow Control and 25mm Suction Hose Kit) » Buy online now for only R 2,358.26 incl. VAT

R 2,358.26 incl. VATAdd to Basket

Average Delivery Time:

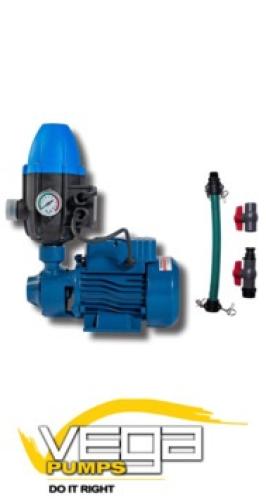

Vega Combo Kit QB60 P/Vane 0.37kW (220V) End-Suction Peripheral Vane QB Range (C/W Flow Control and 25mm Suction Hose Kit) image 1

Description

The QB60 Peripheral Vane Pump is an effective, reliable, and energy-efficient unit. It has a flow rate of up to 25 liters per minute and is available in a combo that includes a flow control switch and lead out cable. When the pressure drops, this switch automatically starts the pump, then turns it off when there is no flow.

Application

  • The QB range is recommended for pumping clean water without abrasive particles and liquids that are chemically non aggressive for the materials of which the pump is made.
  • Due to their reliability, simplicity of use and economy, they are suitable for domestic use and in particular for high pressure applications.
  • The pump must be installed under a vented cover and protected against exposure to rain or water spray.
  • The QB range is manufactured with a brass insert plate to minimize the build up of minerals and heavy metal in the volute.

Specification

  • Flow rate max: 25 L/min (3m³/h)
  • Head max: 38m

Construction characteristics

  • Pump Body: Cast Iron (Brass inserts front and back of volute)
  • Impeller: Brass, with radial peripheral vanes
  • Motor Shaft: Stainless Steel 304
  • Mechanical Seal: Ceramic-graphite
  • Electric Motor: Single-phase 220V - 50Hz with capacitor and thermal overload protector.
  • Insulation: Class B
  • Protection: IP44
