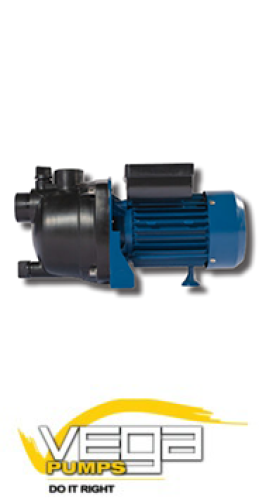

Vega JSPM800 – 0.8kW (220V) Jet Pump » Buy online now for only R 2,385.10 incl. VAT
14579
Description
The JSPM800 is a one of a kind self-priming pump. Constructed with light weight robust material, it is ideal for transport and installation. The JSPM can achieve a suction head of up to 7 meters through the use of the internal Vernturi Technology. It can empty wells and supply enough pressure to run an irrigation system. The pumps deliver a head of up to 40m and deliver a flow of up to 3 000 L/hour.
Application
- The JSPM range is recommended for pumping clean water without abrasive particles and liquids that are chemically non aggressive for the materials used in the construction. Due to their reliability, simplicity of use and economy, they are suitable for domestic use, irrigation applications and specifically for the extraction of water from well points. The pump must be installed under a vented cover and protected against exposure to rain or water spray.
Specification
- Flow rate: max 50 L/min (3.0m³/h)
- Head: max 40m
- Suction lift: max 7m
- Liquid temperature: 40°C
- Ambient temperature: 40°C
Construction characteristics
- Pump Body: Polypropylene
- Impeller: Noryl
- Motor Shaft: Stainless Steel 304
- Mechanical Seal: Ceramic-graphite
- Electric Motor: Single-phase 230V - 50Hz with capacitor and thermal overload protection.
- Insulation: Class B
- Protection: IP44
