Vega Solar 3HR1200-180 – 1200W (72V) 3
14884

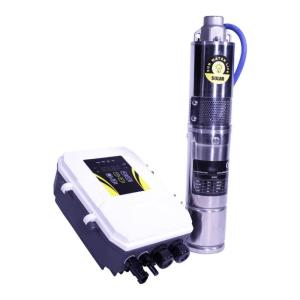

The Vega 3HR1200-180 is a 3" DC solar borehole pump kit (pump plus DC controller) rated 1200 W on 72 V DC. Built from 304 stainless steel, it runs directly from solar panels with no batteries, for off-grid homes, farms and livestock watering.
At a glance
Power: 1200 WSupply: 72 V DCMax. head: 180 mMax. flow: 1.6 m³/hConnections: ¾" (20 mm)Specifications
| Brand | Vega |
| Item code | 40010064 |
| Model | 3HR1200-180 |
| Power | 1200 W |
| System voltage | 72 V DC |
| Maximum panel Voc | 144 V |
| Construction | 304 stainless steel |
| Maximum head | 180 m |
| Type | 3" DC solar borehole pump kit with MPPT controller |
| Motor | Permanent-magnet brushless DC |
| Maximum flow | 1.6 m³/h |
| Outlet | ¾" (20 mm) |
| Pump diameter | 80 mm |
| Maximum submersion depth | 50 m |
| Maximum current | 17 A |
| Sand | Particle size not exceeding 0.5 mm |
| Protection | Water shortage, soft start, over current, automatic stop/start |
| Inputs | Tank probe and well probe |
| Cable | 3-core 2 mm² |
| Dimensions (W × L × H) | 25 × 120 × 20 cm |
| Weight | 12 kg |
Performance Table
| Flow (l/hour) | 0 | 250 | 500 | 750 | 1000 | 1250 | 1500 | 1750 |
|---|---|---|---|---|---|---|---|---|
| Head H (m) | 180 | 168 | 155 | 145 | 130 | 110 | 85 | 0 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Features
- Pump and MPPT DC controller included
- Rated head up to 180 m
- Brushless DC motor for high efficiency
- Tank and well probe inputs for automatic control
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Vega Solar 3HR1200-180?
The Vega Solar 3HR1200-180 has a maximum head of 180 m.
How much water can the Vega Solar 3HR1200-180 pump?
The Vega Solar 3HR1200-180 pumps up to 1.6 m³/h.
What power supply does the Vega Solar 3HR1200-180 need?
Supply: 72 V DC. Motor power: 1200 W.
What are the pipe connections of the Vega Solar 3HR1200-180?
¾" (20 mm).
