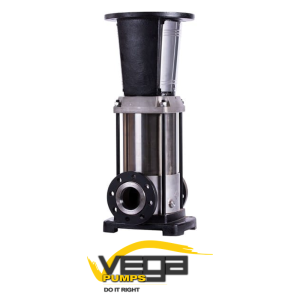

Vega DL5-160 – 2.2kW Vertical Multi-Stage Pump

R 10,230.71 incl. VATAdd to Basket

The Vega DL5-160 is a vertical multi-stage centrifugal pump for a 2.2 kW motor, built in stainless steel for clean-water pressure boosting, irrigation, water treatment and industrial duties. The price is for the pump with motor bracket and coupling; the 380V or 525V motor is quoted separately.

Features

Stainless steel hydraulics
Inline suction and discharge
380V or 525V motor quoted separately
Replacement hydraulic cartridges available

Specifications

Parameter	Value
Brand	Vega
Item code	70010054
Model	DL5-160
Motor power	2.2 kW
Range	DL5
Maximum head	101 m

Performance

Flow Q (m³/h)	3	4	5	6	7	8
Flow Q (l/min)	50	66	83	100	116	133
Head H (m)	101	95	87	78	64	50
