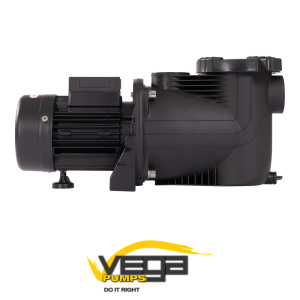

Vega Solar Pool Pump TSP500-13/11B – 500W (48V)
15457
The Vega TSP500 solar pool pump circulates and filters swimming pool water directly from solar panels: 500 W, 48 V DC, with a brushless DC motor and strainer basket.
At a glance
Power: 500 WSupply: 48VMax. head: 13 mMax. flow: 11 m³/h (11 000 l/h)Connections: 1½" (40 mm)Specifications
| Brand | Vega |
| Item code | 40010071 |
| Model | TSP500-13/11B |
| Type | Solar DC pool pump, brushless motor with MPPT controller |
| DC motor voltage | 48V |
| Maximum input Voc | 96V |
| Maximum input current | 17 A |
| Power | 500 W |
| Maximum flow | 11 m³/h (11 000 l/h) |
| Maximum head | 13 m |
| Outlet | 1½" (40 mm) |
| Cable | 3-core 2 mm² |
| Liquid temperature | Up to 60 °C |
| Controller | CN48, operating 42-96V, -15 to +60 °C |
| Supply | 48 V DC |
| Dimensions (W × L × H) | 30 × 50 × 30 cm |
| Weight | 12 kg |
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Vega Solar Pool Pump TSP500-13/11B:
Vega TSP Solar Pool Pumps Technical Data
520 kB | Download
Features
- Runs directly from solar PV
- Brushless DC motor
- Built-in strainer basket
- For pools and ponds
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Vega Solar Pool Pump TSP500-13/11B?
The Vega Solar Pool Pump TSP500-13/11B has a maximum head of 13 m.
How much water can the Vega Solar Pool Pump TSP500-13/11B pump?
The Vega Solar Pool Pump TSP500-13/11B pumps up to 11 m³/h (11 000 l/h).
What power supply does the Vega Solar Pool Pump TSP500-13/11B need?
Supply: 48V. Motor power: 500 W.
What are the pipe connections of the Vega Solar Pool Pump TSP500-13/11B?
1½" (40 mm).
