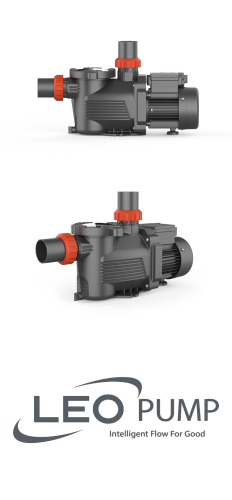

Leo XKP1106 / 1100W 230V Pool Pump And Motor
15521
Introducing the LEO XKP1106, a reliable pool pump from the XKP Pool Pump 3 series designed specifically for water circulation in small domestic swimming pools. This engineering plastic pump excels at maintaining crystal-clear water in residential pool systems, effortlessly handling slightly dirty water with suspended solids to keep your pool fresh and inviting throughout the swimming season.
Built with durability and safety as priorities, the XKP1106 features a sturdy engineering plastic pump body paired with a robust motor available in copper or aluminum winding configurations. Its integrated thermal protector, IPX5-rated enclosure, and Class F insulation ensure reliable year-round performance in ambient temperatures up to 40 degC, while the 3.5-meter maximum suction capability makes it ideal for pools requiring efficient water circulation and filtration without complex installation requirements.
At a glance
Power: 1.1 kWSupply: 230 V single-phase, 50 HzMax. head: 16 mMax. flow: 18 m³/h (300 l/min)Connections: 48.5/50 mmSpecifications
| Brand | Leo |
| Model | XKP1106 |
| Type | XKP..06 Pool Pump 0.6-2.2 kW |
| Motor power | 1.1 kW |
| Supply | 230 V single-phase, 50 Hz |
| Inlet / outlet | 48.5/50 mm |
| Shut-off head | 16 m |
| Flow range | 0 – 18 m³/h (0 – 300 l/min) |
| Dimensions (W × L × H) | 22.5 × 57.5 × 25.5 cm |
| Weight | 12.1 kg |
| Item code | XKP1106(220V) |
Performance Table
| Flow Q (m³/h) | 0 | 6 | 12 | 18 |
|---|---|---|---|---|
| Flow Q (l/min) | 0 | 100 | 200 | 300 |
| Head H (m) | 16 | 15.3 | 12.3 | 7.2 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Leo XKP1106:
Leo XKP..06 Pool Pump 0.6-2.2 kW – Performance Curves and Technical Data (01-DOMESTIC PUMP catalogue p51)
313 kB | Download
Applications
It is used for water circulation in all kinds of small domestic swimming pools. Slightly dirty water with solids in suspension can be perfectly filtered.
Pump
- Engineering plastic pump body
- Medium temperture: 5 - 50ºC
- Environmental temperture: <=40ºC
- Max. suction: 3.5 m
Motor
- Motor with copper or aluminum winding
- Built-in thermal protector for single phase motor
- Insulation class: F
- Enclosures class: IPX5
Model Code: XKP1106(220V)
- XKP - Pool Pump
- 16 - Power (x100W)
- 06 - Product Style
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Leo XKP1106?
The Leo XKP1106 has a maximum head of 16 m.
How much water can the Leo XKP1106 pump?
The Leo XKP1106 pumps up to 18 m³/h (300 l/min).
What power supply does the Leo XKP1106 need?
Supply: 230 V single-phase, 50 Hz. Motor power: 1.1 kW.
What are the pipe connections of the Leo XKP1106?
48.5/50 mm.
